Inside Plant Premise Specialty Innerduct HDPE Conduit Duct

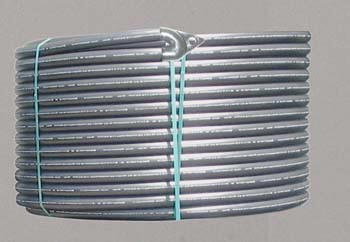

GeoGuard GeoThermal Pressure Pipe. High Density Polyethylene (HDPE) Service Tubing 3/4"- 2" diameters for geothermal applications.

GeoGuard   Geothermal Pressure Pipe

High Density Polyethylene (HDPE) Service Tubing 3/4"- 2" diameters for geothermal applications.

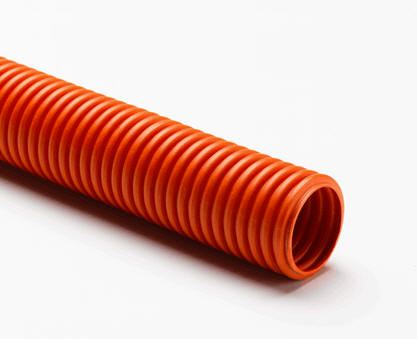

Innerduct UL Riser HDPE Conduit Riser Rated Corrugated Conduit Innerduct Durathane® is ideally suited for use as a nonmetallic flexible raceway for protecting and organizing optical fibers in riser applications. A-D Technologies Arnco and Dura-Line. Premise Conduit innderduct for protecting fiber optic wire cable

Durathane® UL Riser Conduit  Riser Rated Corrugated Conduit  Innerduct

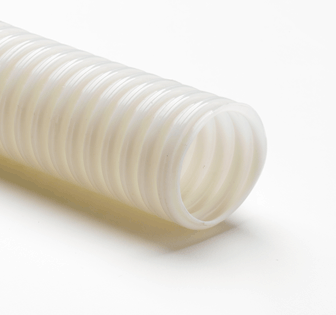

Plenum rated nonmetallic flexible raceway protects fiber optic optical wire cable wires cables wiring cabling. Plenum rated premise conduit innerduct by A-D Technologies Arnco dura-line. This plenum rated conduit non-metallic raceway is ideally suited for plenum and riser applications that require plenum rated non metallic flexible innerduct premise conduit pipe tubing.

Firejacket Plenum Premise Conduit Innerduct

Plenum rated nonmetallic raceway

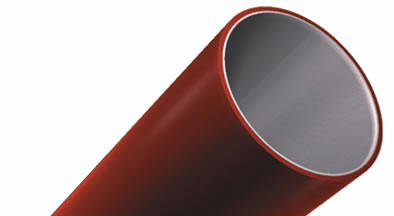

innerduct conduit lszh Fiber-Guard®/LSZH (Low Smoke Zero Halogen) is designed for installation in transportation tunnels and other areas where it would be desirable to eliminate release of halogen gas by products due to fire. Due to an increasing awareness, LSZH is designed to significantly reduce the toxic and corrosive side effects caused by fire on humans and sensitive electronic equipment in confined spaces. Use as an innerduct, pulled into steel conduit, in cable tray or directly attached to tunnel walls.

Fiber-Guard Low Smoke Zero Halogen LSZH Conduit Innerduct Raceway







OUTSIDE Plant Premise Specialty Innerduct HDPE Conduit Buried Duct

locate trace duct innerduct conduit PINPOINT® is a proven, reliable method for locating buried duct. The PINPOINT® wire is encased in HDPE providing a corrosion-resistant conductor. Ideal for plow, open trench or directional bores. It is extremely functional at a wide range of frequencies, compatible with industry standard locating equipment. No special tools are required to couple the duct and the PINPOINT® wire - current coupling methods can be utilized.

PINPOINT®  LOCATED BURIED DUCT

Aerial Drop duct designed for aerial applications, highway or water crossings, building to building, pole to house, added defense against rodent damage and gun shot pellets; easily maneuvered through heavily treed areas with one pass. Increase bandwidth to the home and small business with Aerial Drop Duct. Lightweight, self-supporting and small enough for pole-to-home use. Perfect for easy one-step placement of fiber optics, copper cable or coax applications with a permanent protected pathway for future cable upgrades or repairs.Aerial Drop duct is manufactured from the highest quality HDPE materials and ontains finely blended carbon black and antioxidants for maximum UV and thermal protection. The coextruded SILICORE® super slick permanent lining creates a pathway for easy fiber optic, power or coaxial placement, and eliminates the need for liquid lubricants in an aerial environment

Aerial Drop Duct



FLEX-COR AERIAL CONDUIT FIGURE 8 AERIAL CONDUIT duct figure-8 innerduct outside Minimize your aerial installation and maintenance costs with FlexCor. Strand-Guard Figure-8 is ideal for use in limited access areas such as water crossings, interstate highway crossings or in heavily wooded areas where additional cable protection is necessary. The conduit design permits easy, straight payoff for direct placement onto the pole line and allows greater flexibility for future access to the cable. Standard pole mounting hardware and A-D Technologies' Split-Lock coupler are recommended for quick, airtight installation. No special expansion couplings are necessary, as the corrugated inner liner relieves the mechanical strain caused by extreme temperature changes.

FLEX-COR AERIAL CONDUIT  FIGURE 8 AERIAL CONDUIT

Fiber-Guard®/CR corrugated conduit is manufactured from HDPE resin as specified in ASTM F2160. Protect fiber optic fiber-optic wire cable wires cables can be direct buried and is frequently used for short runs. Corrugated product is commonly used as an innerduct for short pulls. Duct conduit for fiber optic optics optical wire cable

Fiber-Guard®/CR corrugated conduit is manufactured from HDPE resin as specified in ASTM F2160.

can be direct buried and is frequently used for short runs.

Corrugated product is commonly used as an innerduct for short pulls.



innerduct duct conduit Fiber-Guard® Flex-Cor is a jacketed corrugated

Fiber-Guard® Flex-Cor is a jacketed corrugated
conduit designed for above ground installations

Figure 8 Aerial duct designed for aerial applications, highway or water crossings, building to building, added defense against rodent damage and gun shot pellets; easily maneuvered through heavily treed areas with one pass. High tensile strength HDPE duct with “Figure 8” construction incorporates a flooded galvanized support strand for easy one-step aerial placement of duct and strand. Figure 8 duct is manufactured from the highest quality HDPE materials and contains finely blended carbon black and antioxidants for maximum UV and thermal protection. The coextruded SILICORE® super slick permanent lining creates a pathway for easy fiber optic, power or coaxial placement, and eliminates the need for liquid lubricants in an aerial environment.

Strand-Guard® Solid Wall Figure 8

added defense against rodent damage and gun shot pellets

Fiber-Guard® Flex-Cor is a jacketed-corrugated conduit designed for above ground installations in conduit or raceways on bridges or lashed to existing aerial plant. Fiber-Guard® Flex-Cor is also ideally suited for use in direct buried transition locations or for buried services. The Fiber-Guard® Flex-Cor jacketed-corrugated design and material properties compensate for the stresses of expansion and contraction, eliminating the need for special expansion sleeves. Fiber-Guard® Flex-Cor is made of a specially formulated polyethylene resin that resists the adverse effect of sunlight assuring long life in above ground installations. The standard product is available in 1", 1-1/4", 1-1/2" and 2' diameters. The internal corrugated wall can be provided in colors for rapid route identification when installing the cables. The outer jacket is fused to the inner corrugated wall so the assembly performs as a single conduit during installation.

FIBER-GUARD FLEX-COR - FLEXIBLE CORRUGATED JACKETED CONDUIT

 conduit duct innerduct arnco duraline ad technologies Flex-Cor's dual wall construction has excellent tensile/crush resistance permitting long pulls as well as making it strong enough for use in direct buried transitions or for buried services.



FIBER-GUARD FLEX-COR - FLEXIBLE CORRUGATED JACKETED CONDUIT



Fiber-Guard® Slit is a corrugated slit conduit for use where additional protection and identification is required, such as in underground handholes. Available in bright orange color for rapid identification or aerial (UV formulated) black for use in areas where exposure to sunlight will occur. Fiber-Guard Slit is manufactured in five diameters from 3/4" to 2" in standard 250-ft. coils. Special lengths can be made available upon request but minimum quantities may apply.

FIBER GUARD™  SLIT CORRUGATED CONDUIT



armor armored hdpe steel conduit duct innerduct arnco Armor-Guard® is an armored duct designed to provide the highest protection in direct burial or aerial applications. The corrugated steel armor is coated on both sides with a corrosion-resistant copolymer. The coated armor integrally bonded with the HDPE jacket for superior cable protection in rugged environments. The patented Wave RibTM inner liner greatly reduces the coefficient of friction, by over 75%, significantly reducing cable installation loads. It is available in four sizes 1",1-1/4",1-1/2" and 2" diameters.

ARMOR-GUARD™ HDPE STEEL ARMOR CONDUIT





HDPE CONDUIT DUCT INNERDUCT

ribbed wave duct innerduct hdpe conduit raceway Ribbed duct is today’s answer to fast, efficient cable placement in both existing underground systems and direct buried environments. Outside Ribbed is ideal when installing multiple sub-ducts into a larger main duct. Interlocking outer ribs reduce spiraling during duct installation which virtually eliminates unnecessary stress on the cable while being installed. Manufactured from tough High Density Polyethylene (HDPE), Ribbed duct can withstand typical pulling loads and is highly resistant to crushing forces. The unique design allows for fast, easy installation of the duct while providing a lower coefficient of friction for fiber optic, power or copper cable placement, allowing extremely long cable pulls. The product is flexible and can be worked in tight areas. arnco duraline ad technologies

Wave and Ribbed Conduit Innerduct

smooth wall smoothwall smooth-wall hdpe innerduct conduit duct duraline arnco Perma-Guard Smoothwall is made in accordance with ASTM F2160 from high density polyethylene per ASTM D 3350, see specification PS-100 for more specification details. Ideally suited due to its excellent tensile strength for subdividing larger conduits by being pulled in as an innerduct, can be directionally bored, plowed and pull plowed.

SMOOTH WALL_PERMA-GUARD™

Smooth Wall HDPE Innerduct Duct Conduit



Perma Guard™/UL is manufactured from high-density polyethylene (HDPE) resin conforming to the requirements of UL 651 for rigid, non-metallic continuous length HDPE conduit. Perma-Guard™/UL is ideal for use in protecting a wide variety of electrical and telecommunication cable constructions for installation in accordance with the National Electric Code. Approved for use when encased in a minimum of 2" of concrete or in underground applications either direct buried or encased in concrete. Perma Guard/UL is available for 1/2" to 6" in three recognizable NEMA wall thicknesses

PERMA-GUARD™

UL LISTED HDPE INNERDUCT CONDUIT



MicroDucts  protection of fiber optic cables

Microduct, mini duct, micro duct, micro ducts, microducts, innerduct, innerducts, inner duct

MicroDucts for protection of fiber optic cables



FuturePath, fiber optic conduit, fiber optic duct, fiber optic micro duct, mini duct, microsystem, FTTh system, FTTx system, FTTx duct, mini duct, micro-duct

FuturePath® Fiber Optic Technology



microduct micro-duct micro mini duct with pre-installed installed fiber optic optics optical wire cable wires cables wiring cabling arnco microDuct Fiber optic cable, pre-installed, fiber in conduit, fiber in duct, miniduct, mini duct fiber cable

MicroDuct with Pre-Installed Fiber Cable







PRESSURE PIPE TUBING PRODUCTS

pipe tube pipes tubes piping tubing Perma-Guard/PW Tubing for potable water applications is made from strong PE 3408 high-density polyethylene (HDPE) resins.Listed per TR-4 by the Plastics Pipe Institute, the carefully selected and tested HDPE resins are processed using the latest extrusion technologies.

Perma-Guard/PW Tubing for potable water applications

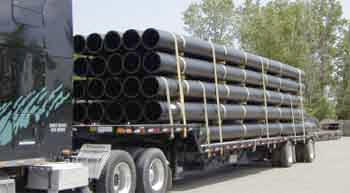

tube pipe tubes pipes HDPE tubing and piping for use in municipal potable water transmission, distribution and service lines, storm and sanitary sewers and industrial or mine piping systems

HDPE tubing and piping for use in municipal potable water transmission, distribution and service lines, storm and sanitary sewers and industrial or mine piping systems

A-D Technologies' Perma-GuardTM/O&G Gathering is extruded using high density polyethylene (PE-3408) resin to produce pipes tubes piping tubing tube pipe

HDPE 3408 TUBING & PIPE FOR OIL & GAS GATHERING, COAL
BED & LANDFILL METHANE RECOVERY APPLICATIONS




HDPE INNERDUCT DUCT CONDUIT COUPLERS CONNECTORS FASTENERS

The Shur-Lock™ II Coupling System is a patented* design for high-integrity joining of HDPE and PVC conduits. The body of the Shur-Lock™II is manufactured from durable high-density polyethylene. The external band clamps and locking rings are made from corrosion-resistant stainless steel. The o-ring joints have been air pressure tested to hold over 130 psi and the water sealing capability withstands head pressures of greater than 20 feet.

duct hdpe conduit innerduct coupler couplers connectors UL Listed for HDPE or PVC Conduit and wet locations.

air tight Coupler Couplers for HDPE cable ducts duct innerduct conduit pipe arnco duraline





armored hdpe duct pipe armor innerduct coupler couplers coupling connector armored conduit arnco duraline






CABLE PLACING EQUIPMENT

Fiber optic wire cable blower blowers blowing installation machine equipment for installing in hdpe innerduct duct A-D Technologies' Air-Trak™ HD provides a very efficient method for quickly installing cable into a continuous conduit system. The unique Horizontal Design (HD) of the powerful tractor assembly permits rapid loading of the cable, improved operator viewing of the cable during installation, and fast belt changeouts for maintenance purposes.

AIR-TRAK™ Air-Assisted

Cable Blowing Equipment



Cable conduit innerduct wire Pushing Machine arnco duraline pusher This powerful hydraulic tractor assembly is designed to push URD power cables into HDPE or PVC conduit for high productivity. The MT800 can also be configured to push-assist HDPE conduit in difficult placement situations.

Maxx-Trak Cable Pushing Equipment™
