GENERAL INFORMATION

FireJacket® is ideally suited for use as a nonmetallic flexible raceway for protecting optical fibers in accordance with NEC articles 770 and 800. It has been tested to meet two Underwriters Laboratory requirements, UL-910 and UL-2024.

Also available with Canadian — UL listing (cUL) meeting or exceeding the requirements for FT-6. Please request the Canadian UL listing at the time of quotation and note on the purchase order. This will assure the material is marked appropriately with the cUL designation.

FireJacket® is ideally suited for use as a nonmetallic flexible raceway for protecting optical fibers in accordance with NEC articles 770 and 800. It has been tested to meet two Underwriters Laboratory requirements, UL-910 and UL-2024.

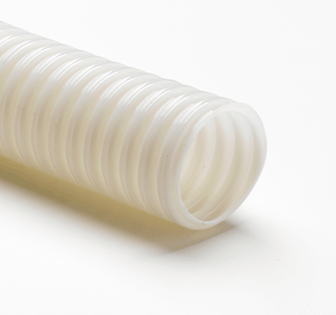

Firejacket®  Plenum Premise Non-Metallic Innerduct raceway

Plenum Rated flexible raceway to protect fiber optic wire cable

 Features & Benefits

  • Available in white or orange for easy identification.
  • Rugged corrugated design is flexible, light weight yet provides excellent crush resistance.
  • Listed to UL Standards 910 and 2024, ideally suited for plenum and riser applications per NEC articles 770 and 800.
  • Choose from 4 diameters, 1", 1-1/4", 1-1/2" and 2" to accommodate your specific fiber cable diameter.
  • Sequential footage markings and product identification printed every two feet.
  • Standard lengths range from 250' coils to 5000' reels.
FAST AND EFFICIENT INSTALLATION

The lightweight, flexible design makes it easy to install and maneuver around obstacles that may be encountered in areas requiring plenum. The corrugated wall provides excellent crush resistance for long-term protection while reducing surface contact between the inside wall of the conduit and the cable jacket, helping to lower cable installation friction. FireJacket® is available with 1000# tensile Bull-Line® pull tape pre-installed to help reduce cable installation costs. Other Bull-Line pull strengths are available upon request.


1-800-843-6036

Click Here to Email Us

    OnLine Order

Supported Browsers IE, SAFARI, CHROME

More Innerduct & A-D Technologies Products

WEB PRICING

HDPE CORRUGATED PREMISE PLENUM RATED CONDUIT  INNERDUCT ON 1000FT REELS

*Prices are for PLENUM Rated Conduit with 1000# PULL TAPE PREINSTALLED

1 INCH  @  $2.372 PER FOOT 1.25 INCH  @  $2.709 PER FOOT
1.5 INCH  @   $3.157 PER FOOT 2 INCH  @   $3.403  PER FOOT
Prices are subject to change without notice.



STANDARD REEL & COIL LENGTHS
Non-standard lengths, special markings and assemblies and other Bull-Line® strengths can be made available upon request (minimum quantities may apply). Contact your A-D Technologies sales representative regarding your specific requirements.



STANDARD REEL & COIL LENGTHS

Non-Standard lengths, special markings and assemblies and other Bull-Line® Pull Tape strengths can be made available upon request (minimum quantities may apply).


 Standard Reel Lengths
 		  Size  Nom OD
 		  Nom ID
 		 Wt. Per 100-Ft.
 		  Footage Reel
F X W
 		  Total Weight

     CR 500 075 N633 1000
 		  0.75"    1.04"   0.80"        10.0#   1,000'   36 x 30
 		       250#
 CR 500 100 N699 1000  1.00"  1.35" 1.11"
 		 12.0#
 		  1,000'  48 x 44
 		  270#
 CR 500 100 N699 2500  1.00"  1.35"  1.11"  12.0#  2,500'  56 x 44
 		  580#
 CR 500 100 N699 5000  1.00"  1.35"  1.11"  12.0#  5,000'  72 x 44
 		  915#
 CR 500 125 N699 1000  1.25"  1.60"  1.30"  13.5#  1,000'  48 x 44
 		  285#
 CR 500 125 N699 2500  1.25"  1.60"  1.30"  13.5#  2,500'  56 x 44
 		  620#
 CR 500 125 N699 5000  1.25"  1.60"  1.30"  13.5#  5,000'  72 x 44
 		  990#
 CR 500 150 N699 1000  1.50"  1.90"  1.55"  16.2#  1,000'  72 x 44
 		  475#
 CR 500 150 N699 2500  1.50"  1.90"  1.55"  16.2#  2,500'  78 x 44
 		  730#
 CR 500 200 N699 1000  2.00"  2.38"  2.10"  18.0#  1,000'  72 x 44
 		  495#
 CR 500 200 N699 1500  2.00"  2.38"  2.10"  18.0#  1,500'  78 x 44
 		  595#

 Standard Coil Lengths
 		  Size Nom OD
 		 Nom ID
 		 Wt. Per 100-ft.
 		 Footage
 		 Reel
F X W
 		  Total Weight

 CR 500 100 N699 0250  1.00"  1.35"  1.11" 12.0#
 		  250' 36 x 17
 		 30#

 CR 500 100 N699 0500  1.00"  1.35"  1.11"  12.0#  500'  39 x 21
 		  60#
 CR 500 125 N699 0250  1.25"  1.60"  1.30"  13.5#  250'  40 x 16
 		  34#
 CR 500 125 N699 0500  1.25"  1.60"  1.30"  13.5#  500'  40 x 25
 		  68#
 CR 500 150 N699 0250  1.50"  1.90"  1.55"  16.2#  250'  40 x 22
 		  41#
 CR 500 150 N699 0500  1.50"  1.90"  1.55"  16.2#  500'  40 x 22
 		  82#
 CR 500 200 N699 0250  2.00"  2.38"  2.10"  18.0#  250'  40 x 30
 		  45#
 CR 500 200 N699 0500  2.00"  2.38"  2.10"  18.0#  500'  45 x 40
 		  90#
