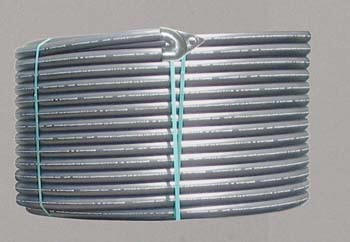

GeoGuard™  Geothermal Pressure pipe tubing is extruded using high density polyethylene HDPE  in parallel coils with u-bends factory installed and tested. Available in standard and custom lengths to meet your application needs. HDPE has excellent chemical resistance, is light weight yet tough, making it ideally suited for geothermal installations in wells, ponds or trenched. Black in color to optimize heat transfer.


GeoGuard™   Geothermal Pressure Pipe Tubing HDPE

High Density Polyethylene HDPE Service Tubing Tube Pipe Piping  3/4"- 2" diameters for geothermal applications.

1-800-843-6036

Click Here to Email Us

    OnLine Order

Supported Browsers IE, SAFARI, CHROME

More Innerduct & A-D Technologies Products



CALL OR EMAIL US FOR PRICING & AVAILABILITY

High Density Polyethylene HDPE Service Tubing Tube Pipe Piping 3/4"- 2" diameters for geothermal applications.

High Density Polyethylene HDPE Service Tubing Tube Pipe Piping  3/4"- 2" diameters for geothermal applications.

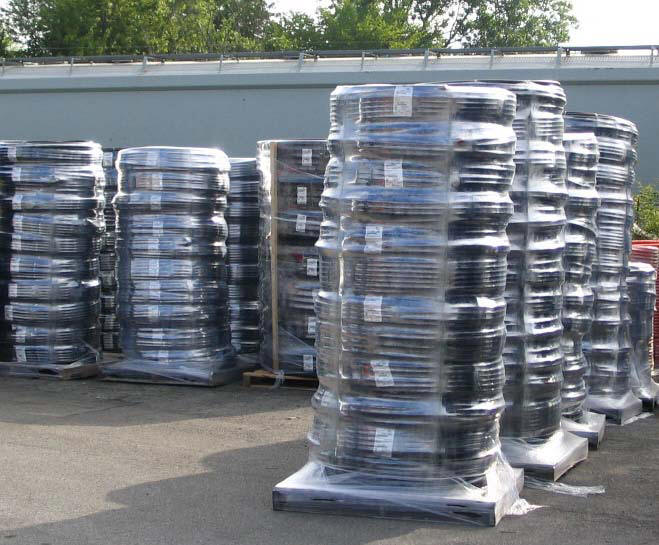

Example of geothermal silo loops High Density Polyethylene HDPE Service Tubing Tube Pipe Piping 3/4"- 2" diameters for geothermal applications.

Example of geothermal silo loops

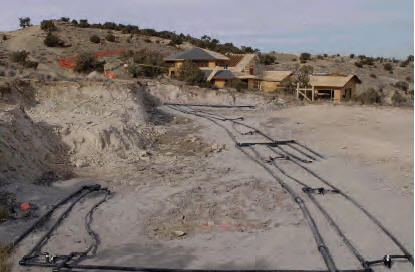

Trenched loop installation hdpe geothermal tubing pipe piping pipes GeoGuard™ tubing is extruded using high density polyethylene (HDPE) in parallel coils with u-bends factory installed and tested. Available in standard and custom lengths to meet your application needs. HDPE has excellent chemical resistance, is light weight yet tough, making it ideally suited for geothermal installations in wells, ponds or trenched. Black in color to optimize heat transfer.

Trenched loop installation

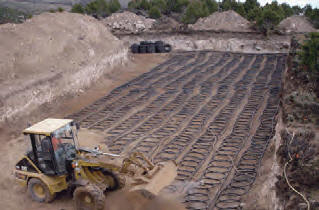

Slinky installation geothermal hdpe tube tubine pipe pipes piping

Slinky installation
Features & Benefits


  • Manufactured from PE 3608, high density polyethylene (HDPE)
  • Superior strength and durability with a lifetime warranty.
  • Available in: Sizes ranging from 3/4" through 2"
  • Copper Tubing Size (CTS) or Iron Pipe Size (IPS)
  • Standard Dimension Ratios (SDR 11)
  • Meets or exceeds the requirements of IGSHPA, sized in accordance with AWWA C901.
  • Coiled lengths with factory installed U-bends provide for seamless installations.



 Durable indent print includes:


  • Nominal tubing size (for example, 1")
  • Type of PE per designation code (PE 3608)
  • Standard Dimension Ration, Pressure rating @73.4ºF (23ºC), (SDR 11, 160 psi)
  • Applicable Standards, (ASTM 2737, AWWA C-906)
  • Manufacturer’s Name or Trade Name, (Perma-Guard™/ GEO)
  • Third party listing, (NSF PW)
  • Manufacturing Run Code
  • Length Markings (Footage Marking)




 Specifications:


  1. PE 3408 resin listed in PPI TR-4, cell classification 345444 or 345464 (C -Black) per ASTM D 3350, fully pressure rated resin.
  2. AWWA C 901, Polyethylene (PE) Pressure Pipe and Tubing, 1/2" (13 mm) through 3" (76 mm) for Water Service. Dimensions are for OD controlled CTS or IPS tubing sizes, applicable for dimensions, testing and quality control.
  3. Made in accordance with the requirements of IGSHPA.
  4. Limited Lifetime Warranty, provided tubing is pressure tested after installation but before grouting or backfilling. Tubing must be installed following manufacturer’s written procedures.


Installation - suitable for direct burial by plowing, directional drilling or placed in a trench. Pipe shall be supported through the use of proper embedment and compaction in open cut installations. For more information regarding installation requirements obtain a copy of the “Polyethylene Handbook” from the Plastic Pipe Institute.
 		 Joining - both the CTS and IPS tubing sizes using any of the heat fusion techniques or approved mechanical fittings that are fully pressure rated and designed for assembling HDPE service tubing.


For more information on Geothermal Heating Options, visit the International Ground Source Heat Pump Association web site.

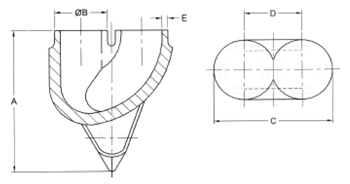

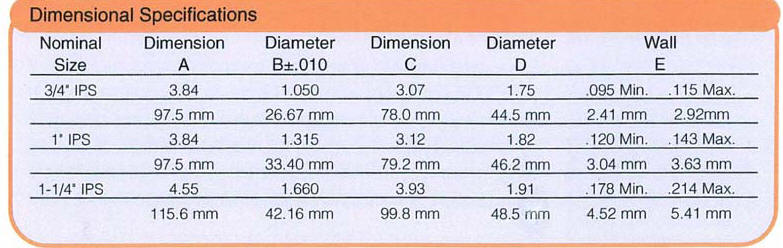

Dimensional specifications for geothermal tube pipe hdpe tubing pipes piping

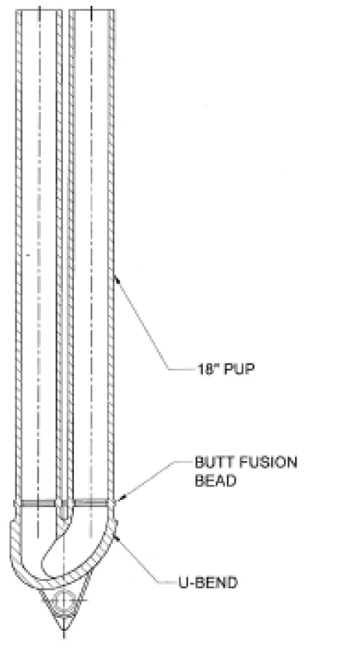

BUTT FUSION FITTINGS - U-BENDS & U-BENDS WITH PUP
U-Bends are available in 3/4", 1", and 1-1/4" IPS.

GeoGuard™   Geothermal Pressure Pipe Tubing HDPE



geothermal tube pipe a-d technologies dura-line arnco

CALL OR EMAIL US FOR PRICING & AVAILABILITY

1-800-843-6036

Click Here to Email Us

    OnLine Order

Supported Browsers IE, SAFARI, CHROME

More Innerduct & A-D Technologies Products





Inside Plant Premise Specialty Innerduct HDPE Conduit

GeoGuard GeoThermal Pressure Pipe. High Density Polyethylene (HDPE) Service Tubing 3/4"- 2" diameters for geothermal applications.

GeoGuard   Geothermal Pressure Pipe

High Density Polyethylene (HDPE) Service Tubing 3/4"- 2" diameters for geothermal applications.



Innerduct UL Riser HDPE Conduit Riser Rated Corrugated Conduit Innerduct Durathane® is ideally suited for use as a nonmetallic flexible raceway for protecting and organizing optical fibers in riser applications. A-D Technologies Arnco and Dura-Line. Premise Conduit innderduct for protecting fiber optic wire cable

Durathane® UL Riser Conduit  Riser Rated Corrugated Conduit  Innerduct

Plenum rated nonmetallic flexible raceway protects fiber optic optical wire cable wires cables wiring cabling. Plenum rated premise conduit innerduct by A-D Technologies Arnco dura-line. This plenum rated conduit non-metallic raceway is ideally suited for plenum and riser applications that require plenum rated non metallic flexible innerduct premise conduit pipe tubing.

Firejacket Plenum Premise Conduit Innerduct

Plenum rated nonmetallic raceway




innerduct conduit lszh Fiber-Guard®/LSZH (Low Smoke Zero Halogen) is designed for installation in transportation tunnels and other areas where it would be desirable to eliminate release of halogen gas by products due to fire. Due to an increasing awareness, LSZH is designed to significantly reduce the toxic and corrosive side effects caused by fire on humans and sensitive electronic equipment in confined spaces. Use as an innerduct, pulled into steel conduit, in cable tray or directly attached to tunnel walls.

Fiber-Guard Low Smoke Zero Halogen LSZH Conduit Innerduct Raceway
