Fully submersible, completely waterproof 2 and 6  port connector splice for power cables wires.

Underground Waterproof Water Proof  Submersible Insulation Piercing Power Cable Connector Splice 2 Port

Underground Waterproof Water Proof  Submersible Insulation Piercing Power Cable Connector Splice 2 Port

Underground Waterproof Water Proof  Submersible Insulation Piercing Power Cable Connector Splice 6 Port

Underground Waterproof Water Proof  Submersible Insulation Piercing Power Cable Connector Splice 6 Port






Underground Waterproof Water Proof  Submersible Insulation Piercing Power Cable Connector Splice 2 Port

Underground Waterproof Water Proof  Submersible Insulation Piercing Power Cable Connector Splice 2 Port

This Two Port Waterproof Connector protects and secures splices.

  • Fully submersible, completely waterproof two port connector
  • Completely waterproof  rubber overmolded body ensures no need for the installer to come into contact with bare metal conductor or the conductive material of the connector
  • Double shear-head bolt guarantees correct torque tightening every time, ensuring a quality connection, & eliminating the possibility of hot spots, damaged wires or loose connections
  • No cable stripping required, simply insert the jacketed cable into the entry port & tighten with a 1/2” 6 point socket
  • Order Qty of 1 = 1 Piece
  • Minimum Order Qty = 1 Piece



Underground Waterproof Water Proof  Submersible Insulation Piercing Power Cable Connector Splice 2 Port

WEB PRICING

Cat No Torque
Inch-lb.
Bolt
Head Size
Number
of Ports
Cable
Range
Height Width Length Min
Order
Qty
*Price
WPC83273-2 185 1/2" 2 2 - 350mcm 2.1" 1.4" 7.0" 1 Piece $74.20





Underground Waterproof Water Proof  Submersible Insulation Piercing Power Cable Connector Splice 6 Port

Underground Waterproof Water Proof  Submersible Insulation Piercing Power Cable Connector Splice 6 Port

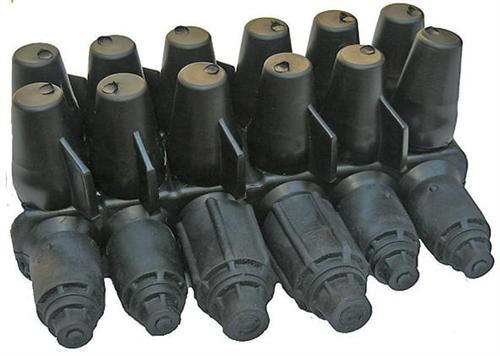

Six Port Waterproof Connector keeps connections safe.

  • Fully submersible, completely waterproof six port connector
  • Completely waterproof rubber overmolded body ensures no need for the installer to come into contact with bare metal conductor or the conductive material of the connector
  • Double shear-head bolt guarantees correct torque tightening every time, ensuring a quality connection, & eliminating the possibility of hot spots, damaged wires or loose connections
  • No cable stripping required, simply insert the jacketed cable into the entry port & tighten with a 1/2” 6 point socket
  • Order Qty of 1 = 1 Piece
  • Minimum Order Qty = 1 Piece

Underground Waterproof Water Proof  Submersible Insulation Piercing Power Cable Connector Splice 6 Port

WEB PRICING

Cat No Torque
Inch-lb.
Bolt
Head Size
Number
of Ports
Cable
Range
Height Width Length Min
Order
Qty
*Price
WPC87663-6 185 1/2" 6 (2) @ 2-350 & (4) @ 6-4/0 2.5" 4.0" 8.4" 1 Piece $121.53
