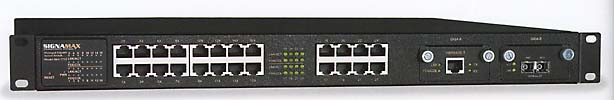

SIGNAMAX™ GIGABIT ETHERNET ACCESS SWITCH

Gigabit Ethernet Access Switch - the cornerstone of teh Signamax Ethernet switch product line.

SNMP, Web-browser, local terminal connection and Telnet remote terminal management capabilities are included.

Model 065-77TX



It will communicate with network management teams to provide SNMP-based information exchange for enterprise-wide status display, statistical monitoring and switch control.

Model 065-77LX



Signamax™ Connectivity Systems' 065-7732 Gigabit Ethernet Access Switch is the cornerstone of the Signamax™ Ethernet switch product line.  It is capable of two optional Gigabit Ethernet connections, and it is a fully functional SNMP-managed 24 port 10/100 Fast Ethernet and Standard Ethernet switch as well.  Two redundant, load-sharing, hot-swappable power supplies are standard equipment.

The two optional Gigabit Ethernet ports permit easy interconnection of these switches as Gigabit speeds, creating a Gigabit Ethernet backbone network with 24 10/100 ports per switch for workstation and server connectivity.  SNMP, Web-browser, local terminal connection and Telnet remote terminal management capabilities are included.  All of these management capabilities can be used simultaneously with real time updating.

Standards supported include IEEE 802.1D Spanning Tree Protocol (STP), to provide fault tolerance; IEEE 802.1p Class of Service (CoS) support, to prioritize network traffic for video, voice, immages, and data; IEEE 802.1Q VLAN support, for network segmentation and traffic control across multiple switches; and GARP VLAN Registration Protocol (GVRP), to ease VLAN configuration concerns.  And, it will communicate with network management systems such as HP OpenView™ to provide SNMP-based information exchange for enterprise-wide status display, statistical monitoring, and switch control.

Need Enclosures/Cabinets?  Click Here


PART NO. DESCRIPTION

065-7732A

 24-Port 10/100T/TX Switch with 2 Gigabit Expansion Ports
065-7732ADC 24-Port 10/100BaseT/TX + 2 Gigabit Expansion Ports, 48VDC
065-7723ANR 24-Port 10/100BaseT/TX + 2 Gigabit Expansion Ports, Single Power
065-77SX 1000BaseSX Expansion Module for Gigabit Access Switch - SC Multimode
065-77 LX 1000BaseLX Expansion Module for Gigabit Access Switch - SC Singlemode (10 km)
065-77LXED 1000BaseLX Expansion Module for Gigabit Access Switch - SC Singlemode (20km)
065-77TX 1000BaseT Expansion Module for Gigabit Access Switch - RJ-45 Cat5e



Need INDUSTRIAL GRADE RATED NETWORKING PRODUCTS? LOW PRICE??





SPECIFICATIONS
APPLICABLE STANDARDS

IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.3z 1000BaseSX/LX
IEEE 802.3ab 1000BaseT
IEEE 802.1p Priority (Classification of Service) [CoS]
IEEE 802.1D Spanning Tree
IEEE 802.1Q Tagged VLAN
IEEE 802.3x Flow Control
IEEE 802.3ad Link Aggregation

PORTS

24 - RJ-45 10/100BaseT/TX ports
2 - Open Gigabit Ethernet interface slots
Optional Interfaces:
   065-77SX:  1000BaseSX with SC multimode fiber connectors.  Maximum distance:  220 meters with 62.5/125 micron fiber cabling or 550 meters with 50/125 micron fiber cabling.
   065-77TX:  1000BaseT with RJ-45 connector.  Maximum distance:  100 meters with Category 5e or better twisted-pair cabling.
   065-77LX:  1000BaseLX with SC Singlemode fiber connectorse.  Maximum distance:  10 km with 9/125 micron fiber cabling.
   065-77LXED:  1000BaesLX with SC singlemode fiber connectors.  Maximum distance:  20 km with 9/125 micron fiber cabling.
PERFORMANCE
Latency:  <4.5 µs (LIFO).
Throughput:  1.48810 million pps (64-byte packets)
Switch Fabric Speed:  12.0 Gbps
ADMINISTRATION CONSOLE
1 - RS-232C DB-9 local console serial port.  (Default Parrameters:  115,200 bps, 8 data bits, no parity, 1 stop bit)
MANAGEMENT
Console port access via RS-232 cable, Telnet remote access, SNMP agent, and web browser.  Kermit/TFTP software-upgrade capability.
LED STATUS INDICATORS
PWR:  Power on
LNK:  Compliant device detected/Unit receiving data
TX:  Data packets transmitted
RCV:  Data packets received
FD:  Full duplex mode
PHYSICAL CHARACTERISTICS
Dimensions:  W440mm x D415mm x H45 mm (17.4 x 16.4 x 1.8 in.)
Weight:  3.4 kg (7.5 lbs.)
SAFETY
UL 1950
WARRANTY
Five years, including power supply





Optional Gigabit Ethernet Modules Sold Separately

PRICING

24-Port 10/100BseT/TX + 2-Port Managed Gigabit Ethernet Access Switch

PART #

1+ EACH

3+ EACH

065-7732A

 $1,060.00 $985.80
065-7732ADC $1,060.00 $985.80
065-7723ANR $990.00 $920.70
065-77SX $458.00 $425.94
065-77 LX 1,000.00 $930.00
065-77LXED $1.140.00 $1,125.30
065-77TX $198.00 $184.14
