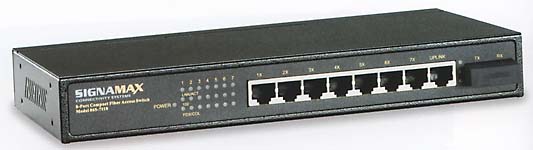

SIGNAMAX™ COMPACT FIBER ACCESS SWITCH

This series of switches allows cost-effective fiber extnsion to small workgroups and PLC clusters.

065-7110 Switches

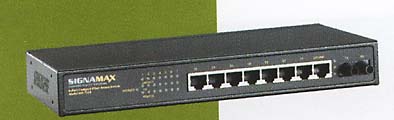

Multimode Compact Fiber Access Switch -- ST

Model 065-7110ST

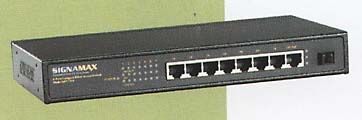

Multimode Compact Fiber Access Switch -- VF-45 (Special Order)

Model 065-7110MT

Signamax™ Connectivity Systems' Compact Fiber Access Switches provide the right port interfaces this is needed for fiber optic extended networks.  The 065-7110 series of switches allows cost effective fiber extension to small workgroups and Programmable Logic Controller (PLC) clusters.  These switches support enterprise-level network extension to outlying buildings in a campus environment, and can also extend process control networks over fiber to production or control machinery equipped with PLCs at Fast Ethernet speeds.  Tagged VLAN and Quality of Service (QoS) packets used to separate and prioritize sub-networks are transparently passed by these switches, to allow administrative and production networks to coexist on the same fiber link.



065-7110 SWITCHES

PART NO.

DESCRIPTION

065-7110SC Multimode Compact Fiber Access Switch -- SC
065-7110ST Multimode Compact Fiber Access Switch - ST
065-7110MT Multimode Compact Fiber Access Switch -- MT-RJ (Special Order)
065-7110VF Multimode Compact Fiber Access Switch - VF-45 (Special Order)
065-7110SM Singlemode Compact Fiber Access Switch -- SC (Special Order)
065-7110SMED Singlemode Compact Fiber Access Switch - SC (Special Order)
065-7110SMXLD Singlemode Compact Fiber Access Switch - SC (Special Order)



Need INDUSTRIAL GRADE RATED NETWORKING PRODUCTS? LOW PRICE??



SPECIFICATIONS

APPLICABLE STANDARDS
  IEEE 802.3 10BaseT
  IEEE 802.3u 100BaseTX
  IEEE 802.37 100BaseFX
  IEEE 802.3x Flow Control
PORTS
  Models 065-7110SC, 065-7110ST, 065-7110LC, 065-7110MT & 065-7110VF:
1- Fixed 100BaseFX port, SC multimode (model 065-7110SC), ST multimode (model 065-7110ST), LC multimode (model 065-7110LC), MT-RJ multimode (model 065-7110MT), or VF-45 multimode (model 065-7110VF) connectors.  (IEEE 802.3u Type 100BaseFX)  Maximum Distance:  2,000 meters with 62.5/125 micron or 50/125 micron multimode fiber cabling
7- Fixed 10/100BaseT/TX ports, RJ-45 connectors; Additional RJ-45 connector wired crossover for convenient twisted-pair uplink capability.  (IEEE 802.3u Type 10BaseT & 100BaseTX)

  Models 065-7110SM, 065-7110SMED, & 065-7110SMXLD:
1-  Fixed 100BaseFX port, SC singlemode connector.  (IEEE 802.3u Type 100BaseFX)  Maximum distance:  Model 065-7110SM:  15 kilometers with 9/125 micron or 10/125 micron singlemode fiber cabling;  Model 065-7110SMED:  40 kilometers with 9/125 micron or 10/125 micron singlemode fiber cabling; Model 065-7110SMXLD:  75 kilometers with 9/125 micron or 10/125 micron singlemode fiber cabling
7- Fixed 10/100BaseT/TX ports, RJ-45 connectors; Additional RJ-45 connector wired crossover for convenient twisted-pair uplink capability.  (IEEE ;802.3u Type 10BaseT & 100BaseTX)

LED STATUS INDICATORS
   Power, Link/Activity, 100Mbps, Full Duplex/Collision
PERFORMANCE
   Throughput:  148,810 packets per second (pps) at 100 Mbps, 14,800 pps at 10 Mbps (64-byte packets)
   Switch Fabric
      Speed:  1.6 Gbps.
Address Table Size:  1,028 entries

PHYSICAL CHARACTERISTICS
   Dimensions:  W254mm x D135mm x H35mm (10 x 5.3 x 1.4 in.)  Weight:  1.6 kg (3.5 lbs)

EMISSIONS

    FCC part 15 Class A
    CE Mark Class A, VCCI Class A

MOUNTING

    Desktop or wall mounting

SAFETY

     UL 1950

WARRANTY

      Five years, including power supply



PRICING

7-Port 10/100BaseT/TX + 1-Port 100BaseFX Compact Fiber Access Switch

PART #

1+ EACH

3+ EACH

Discontinued - Replaced with 065-7111 Series Switches
065-7110SC $290.00 $269.70
065-7110ST $290.00 $269.70
065-7110MT $480.00 $446.40
065-7110VF $480.00 $446.40
065-7110SM $700.00 $651.00
065-7110SMED $900.00 $837.00
065-7110SMXLD $1,480.00 $1,376.40
