| SIGNAMAX ™ 16- & 24-PORT 10/100 ETHERNET SWITCHES | |
|
Expandable 10/100 Rack Mount Switches |
|
|
Model 065-75ST |
Model 065-75SC |

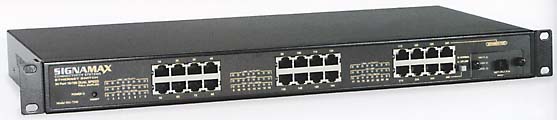

 Model 065-75MT Signamax™ Connectivity Systems' Expandable Rack Mount Switches feature 16 or 24 10/100 ports and an optional 100BaseFX fiber module for longer distance network connections. They include advanced support for Virtual Local Area Networking (VLAN), and multi-port inter-switch trunking for use in larger-scale networks. These switches provide network administrators with powerful, easy-to-use local terminal administrative and configuration tools, and feature a completely non-blocking switch architecture. Both switches transparently pass packets of up to 1,522 bytes, allowing their use in networks utilizing IEEE 802.1p and IEEE 802.1Q tagged packets. |
|
| EXPANDABLE 10/100 RACK MOUNT SWITCHES | |
| PART NO. | DESCRIPTION |
| 065-7530 |
16-Port 10/100BaseT/TX Expandable Switch |
| 065-7540 |
24-Port 10/100BaseT/TX Expandable Switch |
| Expansion Modules | |
|
065-75SC |
100BaseFX Expansion Module for 10/100 Switch - SC Multimode |
|
065-75ST |
100BaseFX Expansion Module for 10/100 Switch - ST Multimode |
|
065-75MT |
100BaseFX Expansion Module for 10/100 Switch - MT-RJ Multimode |
|
065-75VF |
100BaseFX Expansion Module For 10/100 Switch - VF-45 Multimode |
|
065-75SMC-15 |
100BaseFX Expansion Module for 10/100 Switch - SC Singlemode (15 km span) |
|
065-75SMC-40 |
100BaseFX Expansion Module for 10/100 Switch - SC Singlemond (40 km span) |
Need
Enclosures/Cabinets? Click Here
|
APPLICABLE STANDARDS |
| IEEE 802.3 10 BaseT |
| IEEE 802.3u 100BaseTX |
| IEEE 802.3u 100BaseFX |
| IEEE 802.3x Flow
Control |
| LED STATUS INDICATORS |
| PWR: Power on |
| LNK: Compliant device detected/Unit receiving data |
| TX: Data packets transmitted |
| RCV: Data packets received |
| FD: Full duplex mode |
PERFORMANCE |
| Latency: <4.5 µs (LIFO) |
| Throughput: 148,809 pps (64-byte packets) |
| Switch Fabric Speed: |
| Model 065-7530: 4.0 Gbps |
| Model 065-7540: 4.8 Gbps |
PORTS |
| Model 065-7530: |
| 16 - RJ-45 10/100BaseTTX ports (IEEE 802.3 Type 10BaseT; 802.3u Type 100BaseTX) |
| 1 - open 100BaseFX interface slot |
| 1 - RS-232C DB-9 local console serial port (Default Parameters: 9,600 bps, 8 data bits, no parity, 1 stop bit) |
Model 065-7540: |
| 24 - RJ-45 10/100BaseT/TX ports (IEEE 802.3 Type 10BaseT; 802.3u Type 100BaseTX) |
| 1 - oen 100BaseFX interface slot |
| 1 - RS-232C DB-9 local console serial port (Default Parameters: 9,600 bps, 8 data bits, no parity, 1 stop bit) |
PHYSICAL CHARACTERISTICS |
| Dimensions: W440mm x D205mm X H45mm (17.3 x 8.1 x 1.8 in.) Standard 19-in. rack mounting (hardware included). |
| Weight: |
| Model 065-7530: 2.6 kg. (5.7 lbs.) |
| Model 065-7540: 2.9 kg. (6.4 lbs.) |
SAFETY |
| UL 1950, CSA, TUV/GS |
WARRANTY |
| Five years, including power supply |
| Expansion Modules sold separately |
PRICING
|
PART # |
1+ EACH |
3+ EACH |
|
Discontinued - Replaced with WebSmart™ Switches |
||
| 065-7530 | $270.00 | $251.10 |
| 065-7540 | $480.00 | $446.40 |
| Expansion Modules | ||
|
065-75SC |
$183.00 | $170.19 |
|
065-75ST |
$183.00 | $170.19 |
|
065-75MT |
$243.00 | $225.99 |
|
065-75VF |
$189.00 | $175.77 |
|
065-75SMC-15 |
$963.00 | $895.59 |
|
065-75SMC-40 |
$1683.00 | $1565.19 |
