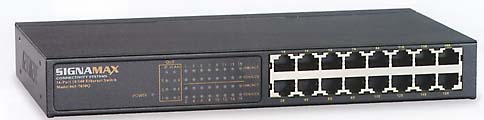

SIGNAMAX™ 16-PORT 10/100 QoS ETHERNET SWITCH

This model features 16 ports that automaticlaly negotiate the presence of 10/100Mbps and full or half-duplex network modes.

Signamax™ Connectivity Systems' Model 065-7030Q Ethernet Switch features 16 ports that automatically negotiate the presence of 10/100Mbps and full or half-duplex network modes.  Each port supports automatic MDI / MDI-X determination for convenient uplinking of multiple switches without using dedicated uplink ports or crossover cables.  IEEE 802.1p QoS Layer 2 priority tagged packets are recognized and acted upon by the switch, allowing local workstation connectivity in complex multi-switch networks.  In addition, the switch accommodates ISO/OSI Layer 3 IP Header priority and port-based priority.  Backed by a five-year performance warranty on all parts, including the power supply.



16-PORT 10/100 QoS ETHERNET SWITCH
PART NO. DESCRIPTION
065-7030Q 16-Port 10/100BaseT/TX QoS Desktop Ethernet Switch

Need Enclosures/Cabinets?  Click Here

SPECIFICATIONS
APPLICABLE STANDARDS
IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.3x Flow Control
IEEE 802.3p Classification of Service (Cos)
PORTS
16 - RJ-45 10/100BaseT/TX ports (IEEE 802.3 10BaseT; 802.3u 100BaseTX) Auto-MDIX on every port for easy linking
PERFORMANCE
Latency:  <4.5 µs (LIFO)
Throughput:  148,809 pps (64-bye packages)
Switch Fabric Speed:  4.0 Gbps
PHYSICAL CHARACTERISTICS
Dimensions:  W254mm x D135mm x H35 mm (10.0 x 5.3 x 1.4 in) Desktop or Wall Mounting (using slots in case)
Weight:  1.6 kg. (3.5 lbs.)
LED STATUS INDICATORS
Power LED
  PWR:    AC Power on Port LEDs
  LNK/ACT:    Network connection/Transmitting or receiving data
  FDX/COL:    Full Duplex mode enabled/Collision occurred QoS Status LEDs
   IP:                Layer 3 IP Header priority on Layer 2 VLAN Tagging priority on Port 1-6:  Port    1-6-Port-based priority on

SAFETY

  UL 1950, CSA, TUV/GS




WARRANTY   Five years, including power supply



PART #

1+ EACH

3+ EACH
065-7030Q $200.00 $186.00
