SIGNAMAX™ 12-PORT 10/100 MODULAR ETHERNET SWITCH |
|
|
|
|
|
Model 065-75203TX1MT |
Model 065-75204ST |
|

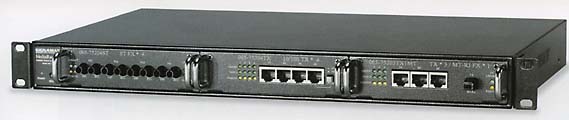

Model 065-75204TX Signamax™ Connectivity Systems' 12-Port 10/100 Switch is a flexible, Fast Ethernet Modular Switch System allowing connections between a wide variety of fiber-optic and copper-based devices. Standard 1U high switch chassis includes power supply, switch backplane, front panel reset button. Port modules complete the switching system; this system supports up to three affordable modules, with at least one required in addition to the switch chassis. Each compact module provides four auto-negotiating 10/100BaseT/TX RJ-45 connections and/or 100BaseFX fiber-optic ports including SC, ST, or the newest small-form-factor MT-RJ and VF-45 connectors. |
|
| 12-PORT 10/100 MODULAR SWITCH CHASSIS AND MODULES | |
| PART NO. |
DESCRIPTION |
| 065-7520 | 12-Port (3 Module) 10/100Base Modular Switch Chassis |
| Switch Modules | |
| 065-75204TX | 4-10/100BaseT/TX Ports |
| 065-75204SC | 4-100BaseFX SC Multimode Ports |
| 065-75204ST | 4-100BaseFX ST Multimode Ports |
| 065-75204MT | 4-100BaesFX MT-RJ Multimode Ports |
| 065-75204VF | 4-100BaseFX VF-45 Multimode Ports |
| 065-75204SMC-15 | 4-100BaseFX SC Singlemode Ports (15 km span) |
| 065-75204SMC-40 | 4-100BaseFX SC Singlemode Ports (40 km span) |
| See Specification Table for Additional Module Part Numbers and Configurations | |
Need
Enclosures/Cabinets? Click Here
|
APPLICABLE STANDARDS |
| IEEE 802.3 10 BaseT |
| IEEE 802.3u 100BaseTX |
| IEEE 802.3u 100BaseFX |
| IEEE 802.3x Flow
Control |
| LED STATUS INDICATORS |
| PWR: Power on |
| LNK: Compliant device detected/Unit receiving data |
| TX: Data packets transmitted |
| RCV: Data packets received |
| FD: Full duplex mode |
PERFORMANCE |
| Latency: <4.5 µs (LIFO) |
| Throughput: 148,810 pps (64-byte packets) |
| Switch Fabric Speed: 2.8 Gbps |
PORTS |
| 12 modular ports, using RJ-45 10/100BaseT/TX (IEEE 802.3 10BaseT; 802.3u 100BaseTX) and/or 100BaseFX fiber optic interfaces with either ST multimode, SC multimore, MT-RJ multimode, VF-45 multimode, or SC singlemode connectors. |
| 4 port interfaces on one module; 3 module slots per 065-7520 chassis |
| 1 - RS-232C DB-9 local console serial port (Default Parameters: 9,600 bps, 8 data bits, no parity, 1 stop bit) |
PRICING
|
PART # |
1+ EACH |
3+ EACH |
| 065-7520 | ||
| Switch Modules | ||
|
065-75204TX |
||
|
065-75204SC |
||
|
065-75204ST |
||
|
065-75204MT |
||
|
065-75204VF |
||
|
065-75204SMC-15 |
||
|
065-75204SMC-40 |
||
