SIGNAMAX™ SERIAL DATA FIBER MEDIA CONVERTERS |
|

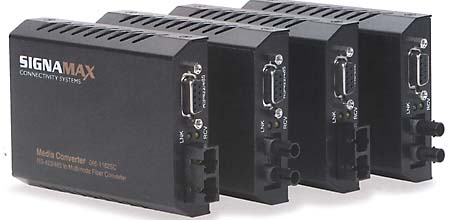

Signamax™ Connectivity Systems Serial Data Fiber Media Converters make it simple to extend distances over multimode or singlemode fiber. They are designed to expand the scope of your RS-232 or RS-422/485 serial data applications, and are 100% compliant with EIA RS-232 unbalanced and both RS-422 and RS-485 balanced line specifications. These converters maintain the same form factor as other Signamax™ media converters, allowing their use in the Model 065-1180 and the Model 065-1185 Signamax™ Rack Mount Chassis systems. Converters for both multimode and singlemode fiber are available in both RS-232 and RS-422/485 configurations. |
| SIGNAMAX™ SERIAL DATA FIBER MEDIA CONVERTERS | |
| PART NO. | DESCRIPTION |
| 065-1162 |
RS-422/485 fiber optic media converter, ST multimode connector, 2,000 meter span |
| 065-1162SC |
RS-422/485 fiber optic media converter, SC multimode connector, 2,000 span |
| 065-1162SM |
RS-422/485 fiber optic media converter, SC singlemode connector, 20 km span |
| 065-1164 |
RS-232 fiber optic media converter, ST multimode connector, 2,000 meter span |
| 065-1164SC |
RS-232 fiber optic media converter, SC multimode connector, 2,000 meter span |
| 065-1164SM |
RS-232 fiber optic media converter, SC singlemode connector, 20 km span |
|
Need INDUSTRIAL GRADE RATED NETWORKING PRODUCTS? LOW PRICE?? |
|
|
|
|
|
SPECIFICATIONS |
| APPLICABLE STANDARDS EIA RS-232 (065-1164 series) EIA RS-422 (065-1162 series) EIA RS-485 (065-1162 series) FIXED PORTS One DB-9 serial data port meeting EIA RS-232 (065-1164 series) or EIA RS422 and EIA RS-485 (065-1162 series) standard specification Push-button switch on rear panel for DTE/DCE selection (all models) DIP switch panel on 065-1162 series for DTE/DCE selection and timer for multipoint (RS-485) environments Maximum distance: 1,000 meters (065-1162 series) or 15 meters (065-1164 series - RS-232 limitation) and One fiber optic port supporting either 62.5/125 micron or 50/125 micron multimode fiber optic cable, 2,000 meters maximum distance or One fiber optic port supporting either 9/125 micron or 10/125 micron singlemode fiber optic cable, spanning 20 kilometers maximum distance PERFORMANCE Supports 5 Mbps (maximum data transfer rate; Bit error rate (BER): <10 -9 LED INDICATORS Unit: Power Fiber Port: LNK; RCV PHYSICAL CHARACTERISTICS Dimensions: Length 110 mm x Width 81 mm x Height 23 mm (4.33 inches x 3.19 inches x 0.91 inches) Weight: 150 grams (0.33 pounds) SAFETY UL Listed WARRANTY Lifetime, including power supplies
|
PRICING
|
PART # |
1+ EACH |
3+ EACH |
| 065-1162 | $198.00 | $188.10 |
| 065-1162SC | $198.00 | $188.10 |
| 065--1162SM | $698.00 | $663.10 |
| 065-1164 | $198.00 | $188.10 |
| 065-1164SC | $198.00 | $188.10 |
| 065-1164SM | $698.00 | $663.10 |
