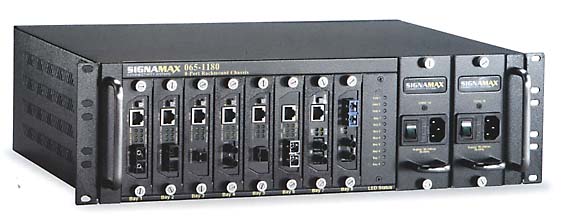

| SIGNAMAX™ 8-BAY MEDIA CONVERTER RACK MOUNT CHASSIS |
|
Signamax™ Connectivity Systems' Model 0650-1180 Rack Mount Chassis is a carrier or enterprise level rack mounting system designed to accommodate the line of Signamax Ethernet Media Converters. Multi-functional chassis allows the same Media Converter to be used as either a standalone or as a rack mountable component. The system ships standard with two hot-swappable, fully redundant, load-sharing power supplies to ensure continued availability of the media converters in the event of a power supply failure. It also ships with three fully redundant, load-sharing cooling fans as a standard configuration. The Signamax™ model 065-01180 Rack Mount Chassis is a system worthy of any TELCO or Interexchange Carrier installation. It is easy to maintain, easy to service, and absorbs substantial abuse without failure. |
Need
Enclosures/Cabinets? Click Here
| 8-BAY RACK MOUNT MEDIA CONVERTER CHASSIS | |
|
PART NO. |
DESCRIPTION |
| 065-1180 | Rack Mount Media Converter Chassis System, includes 2 Redundant Power Supplies and 3 Fan Cooling Assemblies |
| FO-AC-1180 | Spare Redundant AC Power Supply for 8-Bay Chassis |
| FO-DC-1180 | Spare Redundant -48 V DC Power Supply for 8-Bay Chassis |
| FO-1180FAN | Spare Individual Fan Assembly for 8-Bay Chassis |
DIDN'T FIND WHAT YOU WERE LOOKING FOR? NEED MORE OPTIONS?
|
SPECIFICATIONS |
| PHYSICAL
CHARACTERISTICS Dimensions: 430 mm Wide x 290 mm Deep x 133 mm High (17.0 in. x 11.5 in. x 5.1 in.) 3 standard rack units Weight: Approximately 5.2 kilograms (11.5 pounds), fully loaded POWER SUPPLIES Load-sharing and hot-swappable; 2 supplied as standard equipment SAFETY Power Supplies: UL 1950 Listed, CSA 234, 22.2, TUV EN60950 Cooling Fans: UL/cUL/TUV Listed/Approved WARRANTY Lifetime, including power supplies CAPACITY Eight bays for up to eight 065-11xx series media converters LED STATUS INDICATORS Power: Power supply on-line Fan1/Fan2/Fan3: LED indicates that the fan is on-line Bay 1 -- Bay 8: LED indicates bay is occupied and associated Media Converter is receiving power |
PRICING
|
PART # |
1+ EACH |
3+ EACH |
| 065-1180 | $590.00 | $559.00 |
| FO-AC-1180 | $129.00 | $119.00 |
| FO-DC-1180 | $129.00 | $119.00 |
| FO-1180FAN | $29.00 | $22.00 |
