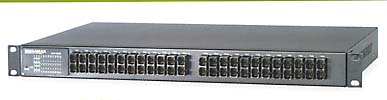

SIGNAMAX™ 24-PORT 100FX ETHERNET FIBER SWITCH

24 Port 100FX Ethernet Fiber Switch connects workstations and servers using fiber optic cable.

Signamax™ Connectivity Systems' Model 065-7640FSC and 065-7640FSM Fast Ethernet Fiber Switches connect workstations and servers using fiber optic cable where Gigabit Ethernet connections are not desired.  These non-blocking 24-port 100BaseFX Fast Ethernet switches have SNMP, Web-browser, local terminal connection and Telnet remote terminal management capabilities included, to build a fiber-based enterprise-level network at Fast Ethernet speeds.  Model 065-7640FSC proves 24 100Base FX multimode fiber optic ports, typically used in Local Area Network (LAN) applications.  Model 065-7640FSM provides 24 100BaseFX singlemode fiber ports, for use in carrier network applications in LANs where longer distances need to be spanned.



FAST ETHERNET FIBER SWITCH

PART NO.

DESCRIPTION

065-7640AFSC

 Fast Ethernet Fiber Switch -- Multimode, SC Connectors
065-7640AFSM Fast Ethernet Fiber Switch -- Singlemode, SC Connectors



SPECIFICATIONS
APPLICABLE STANDARDS
IEEE 802.3u 100BaseFX
IEEE 802.1p Priority (CoS)
IEEE 802.1D Spanning Tree
IEEE 802.1Q VLANs
IEEE 802.3x Flow Control
IEEE 802.3ad Link Aggregation

PORTS
Model 065-7640AFSC:
24-    100BaseFX ports, SC multimode connectors; span up to 2,000 meters (IEEE 802.3u 100BaseFX)
1-    RS-232C DB-9 local console serial port (Default Parameters:  115,200 bps, 8 data bits, no parity, 1 stop bit)
MODEL 065-7640AFSM:
24-    100BaseFX ports, SC singlemode connectors; span up to 75 kilometers (IEEE 802.3u 100BaseFX)
1-    RS-232C DB-9 local console serial port (Default Parameters:  115,200 bps, 8 data bits, no parity, 1 stop bit)
MANAGEMENT
Console port access via RS-232 cable, Telnet remote access, SNMP agent, and Web browser.  Kermit/TFTP software-upgrade capability

PERFORMANCE:
Latency:  <4.5 µs (LIFO).
Throughput:  1.48810 million pps (64-byte packets)
Switch Fabric Speed:  12.0 Gbps.

LED STATUS INDICATORS:
  Per Unit:
   Power status
   Per Port:
   LNK/ACT, FDX (2 LEDs) for each 100BASE-FX port

PHYSICAL CHARACTERISTICS:
   Dimensions:  W440mm x D415mm x H45 mm (17.4 x 16.4 x 1.8 in)
   Standard 19-in rack mounting (hardware included).
   Weight:  3.4 kg (7.5 lbs.)

POWER
   AC Input:  100 ~ 260VAC, 47 ~ 63Hz internal universal power supply
                        or
    DC Input:  -48 VDC, LUG Type - 2 pin connector block; internal DC power supply
     Specification applies to each of two included redundant, load-sharing, hot-swappable power supplies.

SAFETY
    UL 1950

WARRANTY
    Five years, including power supply

PRICING

PART #

1+ EACH

3+ EACH

065-7640AFSC

 $5000.00 $4650.00
065-7640AFSM $13,400.00 $12,462.00
065-7640AFSDC $5000.00 $4650.00
065-AFSMDC $13,400.00 $12,462.00
