SIGNAMAX™  16-BAY MEDIA CONVERTER RACK MOUNT CHASSIS

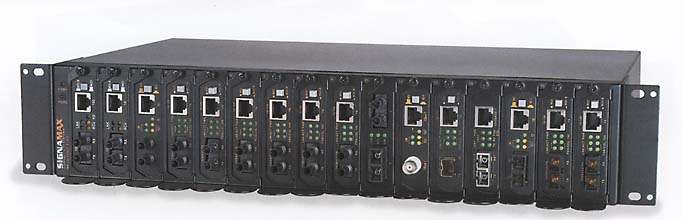

The Signamax™ 065-1185 16-Bay Media Converter Rack Mount Chassis provides higher rack mount media converter density for large installations that can accommodate rear access to the chassis for power supply maintenance.  The 065-1185 provides 16 bays of space for all 065-11xx series Signamax™ media converters in a standard two rack unit high enclosure.  High port density allows a variety of media converter solutions to be housed in a minimum amount of rack spaces for enterprise-level businesses and carriers.  Redundant, fan-cooled load-sharing power supplies can be hot-swapped to ensure system uptime.

The 065-1185 has a choice of power supply configuration, supporting AC power for 110 volt or 220 volt power systems or -48 volt DC power for carrier operations.

SPECIFICATIONS

Dimensions:  440 mm Wide x 276 mm Deep x 90 mm High (17.3 in. x 10.9 in. x 3.5 in.)

2 standard rack units

Weight:  Approximately 8.5 kilograms (18.7 pounds), fully loaded

Power Supplies:

Load-sharing and hot-swappable; 2 supplied as standard equipment.  AC and -48 volt DC units available.  Power status LED on each power supply, as well as remote status LEDs on front pane.

Capacity:

Sixteen bays, for up to sixteen 065-11xx series media converters.

LED STATUS INDICATORS

Power 1/Power2:  Power supply on-line

Safety:

UL 1950 listed

Cooling Fans:  UL/cUL/TUV Listed/Approved.

Warranty:

Lifetime, including power supplies
