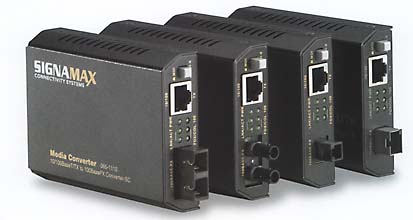

SIGNAMAX™ 10/100 SWITCHING FIBER MEDIA CONVERTERS |
| Signamax Connective
Systems' Switching Media Converters provide an intelligent solution for long
distance connections between legacy 10BaseT networks and the newer 100BaseTX
Fast Ethernet. These converters are designed to handle a wide variety
of fiber optic network applications and eliminate the 412 meter distance
limitation when connecting hub-based sub-networks. They also extend
the maximum singlemode fiber distance, spanning over 46 miles with the
065-1120XLD model.
|
Built-in 10/100 switch enables the fiber cable connection to operate at 100 Mbps connected to either a 10BaseT or a 100BaseTX network, while remaining completely 100BaseFX standard-compliant. Fiber connection can also operate in full duplex mode whether the RJ-45 port is connected to a full duplex switch or a half duplex hub. Each Media Converter provides a 10/100BaseT/TX auto-negotiating RJ-45 twisted-pair connector port featuring store-and-forward switching architecture. Built-in switch does the network segmentation to provide the maximum fiber distance. PRICING 10/100 BASE T/TX Switching Fiber Optic Media Converters
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
SIGNAMAX NETWORK CONNECTIVITY PRODUCTS |

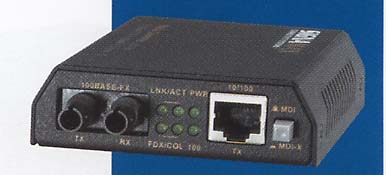

MODEL 065 1100 |
|

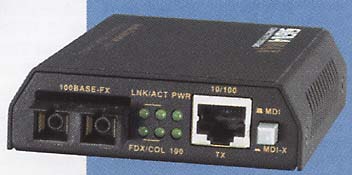

MODEL 065 1110 |

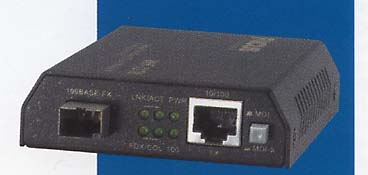

MODEL 065 1170 |
|

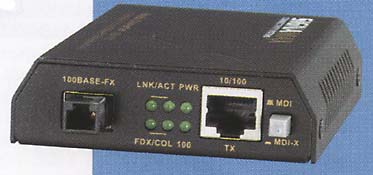

MODEL 065 1172 |

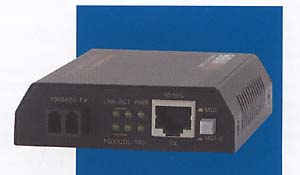

MODEL 065 1174 |
Need
Enclosures/Cabinets? Click Here
|
SPECIFICATIONS |
| APPLICABLE STANDARDS IEEE 802.3 10BaseT IEEE 802.3u 100BaseTX IEEE 802.3u 100BaseFX |
| FIXED PORTS 1 twisted-pair port meeting IEEE 802.3, 10BaseT & IEEE 802.3u 100BaseTX standard specifications; Category 5 or better cable, 100 meters maximum distance for 100BaseTX, Category 3 or better cable, 100 meters maximum distance for 10Base T plus 1 fiber optic port meeting IEEE 802.3u 100Base FX standard specification; 62.5/125 or 50/125 micron multimode fiber optic cable, 2,000 meters maximum distance or 1 fiber optic port meeting IEEE 802.3u 100BaseFX standard specification; 9/125 micron singlemode fiber optic cable, spanning: 15 kilometers maximum distance (Model 065-1120) or 40 kilometers maximum distance (Model 065-1120ED) or 75 kilometers maximum distance
(Model 065-1120XLD) |
| PERFORMANCE Latency: <4.2 µs (LIFO) Throughput: 148,809 pps (64-byte packets) |
| LED
INDICATORS Per unit - Power status, RJ-45 port speed Per Port - LNK/ACT, FDX/COL Six LEDs total |
| PHYSICAL
CHARACTERISTICS Case Dimensions: Length 110 mm x Width 81 mm x Height 23 mm (4.33 inches x 3.19 inches x 0.91 inches) Fiber connector protrusion varies with model. Weight: 150 grams (0.33 pounds) |
| SAFETY UL Listed |
| WARRANTY Lifetime, including power supplies |
