Explosion Proof Flexible Couplings Coupling 1/2 inch 1/2" half inch

Explosion Proof Explosion-Proof ExplosionProof Flexible Coupling Couplings for Hazardous Areas Locations Coupler 1/2" 1/2 Inch half inch

Explosion Proof Coupling Couplings Product Index Guide Listed Below.



1-800-843-6036

Click Here to Email Us

   OnLine Order

Explosion Proof Flexible Couplings Coupling 1/2 inch 1/2" half inch

Email or call us for pricing.

Explosion Proof Flexible Couplings Coupling 1/2 inch 1/2" half inch

Explosion Proof Flexible Couplings Coupling 1/2 inch 1/2" half inch

Explosion Proof Flexible Coupling Couplings that are Explosion-Proof Explosionproof Flexible Couplings Coupler

Explosion Proof Flexible Coupling Couplings that are Explosion-Proof Explosionproof Flexible Couplings Coupler that are used for difficult bends.

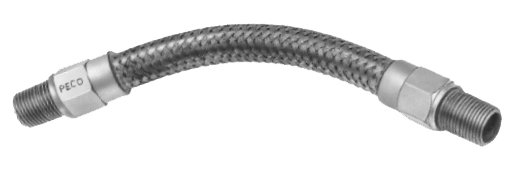

Couplings that are flexible and Explosion Proof are used for Movement of connected fixtures and vibration of connected equipment such as motors. Explosion Proof flexible Coupling Couplings for Hazardous Areas Locations are constructed from Bronze Braided Brass Tubing, and have an Arc Resistant Liner. Manufactured by Producto Electric Corporation PECO.
1/2" Explosionproof Explosion Proof Explosion-Proof Flexible Couplings are UL Listed for in the following Hazardous Area Location:
Class I Groups A, B, C, D, and Class II Groups E, F, G
Explosion Proof Flexible Couplings are Assembled with two female Threaded End Fittings and Two Male Nipples - Type ECGJH


***Special Web Prices

Email or Call for Pricing





Explosion Proof Flexible Couplings Coupling 1/2 inch 1/2" half inch

Assembled With Two Female Threaded End Fittings and Two Male Nipples Type ECGJH

Features
All Sizes are constructed from bronze braided brass tubing, and have an arc resistant liner.

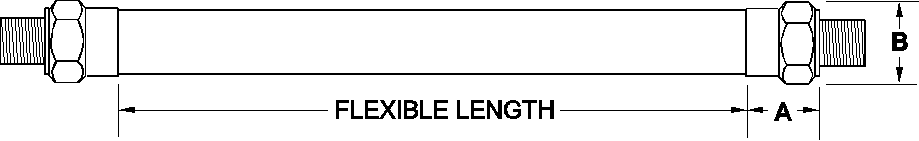

Flexible Length does not include fittings. Custom lengths available on special request. Third party certification not available for lengths greater than 36" in any size.

Flexible couplings are used for:
  • Accomplishing difficult bends
  • Movements of connected fixtures
  • Vibration of connected equipment (as motors)

  •

    Explosion Proof Flexible Couplings Coupling 1/2 inch 1/2" half inch



    Item #

    Item Name

    Size

    Flexible Length (Inch)

    Std.Pkg.

    Std. Pkg. Wt.

    Dim. A

    Dim. B

    Note/Remark



    FC-14 Explosion Proof Flexible Couplings 1/2 4 1 1 1.54 1.44 Class I Groups A, B, C, D
    Class II Groups E,F,G

    FC-16 Explosion Proof Flexible Couplings 1/2 6 1 1.2 1.54 1.44 Class I Groups A, B, C, D
    Class II Groups E,F,G

    FC-18 Explosion Proof Flexible Couplings 1/2 8 1 1.4 1.54 1.44 Class I Groups A, B, C, D
    Class II Groups E,F,G

    FC-110 Explosion Proof Flexible Couplings 1/2 10 1 1.6 1.54 1.44 Class I Groups A, B, C, D
    Class II Groups E,F,G

    FC-112 Explosion Proof Flexible Couplings 1/2 12 1 1.8 1.54 1.44 Class I Groups A, B, C, D
    Class II Groups E,F,G

    FC-115 Explosion Proof Flexible Couplings 1/2 15 1 2.1 1.54 1.44 Class I Groups A, B, C, D
    Class II Groups E,F,G

    FC-118 Explosion Proof Flexible Couplings 1/2 18 1 2.4 1.54 1.44 Class I Groups A, B, C, D
    Class II Groups E,F,G

    FC-121 Explosion Proof Flexible Couplings 1/2 21 1 2.7 1.54 1.44 Class I Groups A, B, C, D
    Class II Groups E,F,G

    FC-124 Explosion Proof Flexible Couplings 1/2 24 1 3 1.54 1.44 Class I Groups A, B, C, D
    Class II Groups E,F,G

    FC-127 Explosion Proof Flexible Couplings 1/2 27 1 3.3 1.54 1.44 Class I Groups A, B, C, D
    Class II Groups E,F,G

    FC-130 Explosion Proof Flexible Couplings 1/2 30 1 3.6 1.54 1.44 Class I Groups A, B, C, D
    Class II Groups E,F,G

    FC-133 Explosion Proof Flexible Couplings 1/2 33 1 3.9 1.54 1.44 Class I Groups A, B, C, D
    Class II Groups E,F,G

    FC-136 Explosion Proof Flexible Couplings 1/2 36 1 4.2 1.54 1.44 Class I Groups A, B, C, D
    Class II Groups E,F,G

    FC-24 Explosion Proof Flexible Couplings 3/4 4 1 1.2 1.60 1.87 Class I Groups A, B, C, D
    Class II Groups E,F,G

    FC-26 Explosion Proof Flexible Couplings 3/4 6 1 1.4 1.60 1.87 Class I Groups A, B, C, D
    Class II Groups E,F,G

    FC-28 Explosion Proof Flexible Couplings 3/4 8 1 1.7 1.60 1.87 Class I Groups A, B, C, D
    Class II Groups E,F,G

    FC-210 Explosion Proof Flexible Couplings 3/4 10 1 2 1.60 1.87 Class I Groups A, B, C, D
    Class II Groups E,F,G

    FC-212 Explosion Proof Flexible Couplings 3/4 12 1 2.2 1.50 1.87 Class I Groups A, B, C, D
    Class II Groups E,F,G

    FC-215 Explosion Proof Flexible Couplings 3/4 15 1 2.6 1.60 1.87 Class I Groups A, B, C, D
    Class II Groups E,F,G

    FC-218 Explosion Proof Flexible Couplings 3/4 18 1 3 1.60 1.87 Class I Groups A, B, C, D
    Class II Groups E,F,G

    FC-221 Explosion Proof Flexible Couplings 3/4 21 1 3.4 1.60 1.87 Class I Groups A, B, C, D
    Class II Groups E,F,G

    FC-224 Explosion Proof Flexible Couplings 3/4 24 1 3.8 1.60 1.87 Class I Groups A, B, C, D
    Class II Groups E,F,G

    FC-227 Explosion Proof Flexible Couplings 3/4 27 1 4.2 1.60 1.87 Class I Groups A, B, C, D
    Class II Groups E,F,G

    FC-230 Explosion Proof Flexible Couplings 3/4 30 1 4.6 1.60 1.87 Class I Groups A, B, C, D
    Class II Groups E,F,G

    FC-233 Explosion Proof Flexible Couplings 3/4 33 1 5 1.60 1.87 Class I Groups A, B, C, D
    Class II Groups E,F,G






    EXPLOSION PROOF COUPLING PRODUCT INDEX
    3/4" Explosion Proof Flexible Couplings Type ECGJH 1" Explosionproof Flexible Coupler Type ECGJH 1-1/4" Explosion-Proof Flexible Couplings Type ECGJH
    1-1/2" Explosion Proof Flexible Couplings Type ECGJH 2" Explosion-Proof Flexible Couplings Type ECGJH




    Stainless Steel Explosion Proof Flexible Couplings
