More Edwards Signaling Solutions

PUBLIC ADDRESS SYSTEMS


MIXER PREAMPLIFIER & INPUT DEVICES

6000-MP SERIES

mixer preamplifier edwards part number 6-mpamp

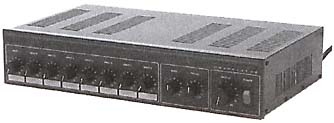

MIXER PREAMPLIFIER

6000-MP-AMP

dual mic/aux input module, edwards part number 6000-mp-dmicDUAL MIC/AUX INPUT MODULE

6000-MP-DMIC

dual stereo summing input module, edward's part number 6000-mp-dsumDUAL STEREO SUMMING INPUT MODULE

6000-MP-DSUM

The Edwards Mixer Preamplifier Catalog 6000-MPAMP has the capacity to accept up to eight programmed inputs using Edwards Input modules and a bridging transformer input.  The bridging input allows parallel operation with another 6000-MPAMP.  The unit's modular concept enhances the ability of the system designer to package the Mixer Preamplifier to specific design criteria.

The 6000-MPAMP circuitry maintains low distortion (THD) and high signal-to-noise ratio.  The Mixer/Preamplifier has dual, single-ended outputs that can be converted into an active, balanced output.  The dual outputs are desirable for driving individual channel amplifiers.  The 6000-MPAMP allows for priority muting.

The unit can be mounted in any standard 19" (48.3cm) equipment rack.  For 42" wall cabinet mounting, order Cat. No. 6000-MR-42; for 21" wall cabinet mounting, order Cat. No. 6000-MR-21.  The removal of the unit's mounting brackets allow for table top mounting.  The 6000-MPAMP has eight individual volume controls, bass and treble control, master volume control, lighted AC power switch and a tone control bypass switch.  The front panel is covered by a protective polycarbonate overlay.

Input modules

6000-MP-DMIC Dual Mic/Aux Input Module

Provides two inputs, each selectable for transformer isolated, low impedance microphone or auxiliary.

6000-MP-DSUM Dual Stereo Summing Input Module

Provides auxiliary level inputs from two stereo sources.

FEATURES

  • Made in USA
  • Master/satellite architecture
  • Low distortion and noise
  • Priority muting
  • Protective polycarbonate overlay
  • Color-coded, calibrated LED level display
  • Rack mount of table top

AGENCY APPROVALS

  • UL 813 Listed for Commercial Sound

SPECIFICATIONS

  • Rated output: 6V RMS dual single-ended output (+18.0dBm), 12V RMS active balanced output (+18.0dBm)
  • 600 ohm output load impedance
  • 120V AC, 60Hz, 6 Watts
  • -10C to +60C (12F t0 140F)

PRICING

Cat. No. Description Power Requirements Frequency Response Input Sensitivity Impedance Noise Level Price Each
6000-MPAMP Mixer preamp 120V AC     60 Hz 20 Hz to 20 KHz          (+/- 1/2 dB) Input Module Dependent Input Module Dependent Bridging= Approx. 6k ohms Mic: >-60dB Aux: >-65dB Master Control Off: >-85 dB $1028.00
6000-MP-DMIC Dual Mic/Aux Input Module +/- 15V DC @ 10mA 20 Hz to 20 KHz          (+/- 1dB) Mic: 300microV  Aux: 0.1V or 1V Mic: 150 ohms to 200 ohms, transformer isolated Aux. 10k ohms SNR Ratio Mic: >60dB Aux: >65dB $256.00
6000-MP-DSUM Dual Stereo Summing Input Module +/- 15V DC @ 10mA 20 Hz to 20 KHz          (+/- 1 dB) 500mV 100k ohms SNR Ratio: 75dB (20Hz band limiting) $106.00





FIRE PROTECTION &  COMMERCIAL POWER AMPLIFIERS    6000-AMP SERIES

fire protection and commercial power amplifiers, edward's part number 6000-amp series

6000-AMP SERIES

COMMERCIAL POWER AMPLIFIER



Edwards Power Amplifiers are rated at either 60, 125, or 250 Watts (RMS) and mount into standard 19-inch (48.3 cm) wide equipment racks.  All Edwards amplifiers are UL 813 Listed and can be used in sound reinforcement, general paging, a well as commercial and industrial communication systems applications.

The 6000-125AMP-FP and the 6000-250AMP-FP provide either a continuous 125 Watt or 250 Watt output with the ability to automatically switch to battery operation in the event of a line voltage reduction or power failure.  Patented circuitry allows instantaneously switching in and out of battery operation while still maintaining state-of-the-art performance.

The 6000-125AMP-FP and the 6000-250AMP-FP have been verified by Underwriters Laboratories to meet the UL Standard 1711 requirement for 250 hours of continuous full-power operation.  They are ideally suited for any fire alarm or life safety system that requires a UL 1711 Listed amplifier.

For 42" wall cabinet mounting, order Cat. No. 6000-MR-42; for 21" wall cabinet mounting, order Cat. No. 6000-MR-21.

FEATURES

  • Made in USA
  • Broad frequency response
  • Low distortion
  • Fire protection signaling models

AGENCY APPROVALS

  • UL 813 Listed for Commercial Sound
  • 125 & 250 watt Fire Protection Models UL 1711 Listed

SPECIFICATIONS

  • 120 V AC 60 Hz power source
  • Charcoal baked enamel finish
  • Screw terminations with barriers on output terminals
  • Output regulation better than 1 dB, no load to full load

PRICING

Cat. No. Power Output (RMS) Frequency Response Input Impedance AC Power Requirements DC Power Requirements Dimensions        A        B       C Price Each
6000-60AMP 60 watts 20 Hz to     20 KHz 20K ohms 120V AC, 1.4A at rated output, 0.18A standby N/A 5 1/4"    19"    6 1/4" $682.00
6000-125AMP 125 watts 20 Hz to    20 KHz 20K ohms 120V AC, 2.8A at rated output, 0.22A standby N/A 5 1/4"    19"    6 1/4" $748.00
6000-125AMP-FP 125 watts 20 Hz to 20 KHz 75K ohms 120V AC, 3.0A at rated output, 0.3A standby 24V DC, 11.5A at rated output, 1.2A standby 5 1/4"     19"    6 5/8" $1,198.00
6000-250AMP 250 watts 20 Hz to 20 KHz 20K ohms 120V AC, 4.9A at rated output, 0.27A standby N/A 5 1/4"      19"       13" $1,302.00
6000-250AMP-FP 250 watts 20 Hz to 20 KHz 75K ohms 120V AC, 5.8A at rated output, 0.3A standby 24V DC, 23.0A at rated output, 2.4A standby 5 1/4"      19"     15" $1,728.00





25/70 VOLT RE-ENTRANT SPEAKERS 6000-RS-25/70 SERIES

re-entrant speakers, edward's part number 6000-rs-25/70 series



RE-ENTRANT SPEAKER

 6000-RS-25/70 SERIES

FEATURES
  • Made in USA
  • 15 and 30 watt models
  • Ideal for high noise level areas
  • Indoor and outdoor
  • Highly directional & intelligible
  • Built-in 25 volt and 70 volt transformer with selector switch
Edwards Re-entrant speakers are available in 15 or 30 Watt continuous output models.  All models have a screwdriver adjustable switch that can be externally adjusted to numerous output settings.  Both the 15 and 30 Watt models have a 25V as well as a 70V line.

The 15 Watt 6000-15RS-25/70 features a sound pressure level of 116dB at 1 meter on axis.  Sound dispersion is 115 degrees (-6dB, 1000Hz), 70 degrees (-6dB, 2000Hz), and 40 degrees (-6dB, 4000Hz) octave band.  The 70V line can be selected to 15, 7.5, 1.8, 0.94, and 0.48 watts.  Available input impedances are 5000, 2500, 1300, 666, 333, 80, and 45 ohms.

The 30 Watt 6000-30RS-25/70 features a sound pressure level of 126dB at 1 meter on axis.  Sound dispersion is 100 degrees (-6dB, 1000Hz) and 60 degrees (-6dB, 2000Hz) octave band.  The 70V line can be selected to 30, 15, 7.5, 3.8, and 2.0 watts.  The 25V line can be selected to 15, 7.5, 3.7, 1.8, and 0.9 watts.  Available input impedances are 2500, 1300, 666, 333, 167, 89 and 45 ohms.

The Edwards 6000-RS-25/70 Series are ideal for medium and high level indoor and outdoor paging in industrial warehouses, institutions, civic centers, commercial buildings, and recreational areas requiring a high degree of sound concentration.

SPECIFICATIONS

  • Beige baked epoxy finish
  • Screw terminations with transparent cover & strain relief clamp
  • Three-way adjustable mounting bracket
  • Weight (15 watt) - 5 lb (2.3kg)
  • Weight (30 watt) - 7 lb (3.2kg)

PRICING
Cat. No. Power Rating Frequency Response Dimensions

A                   B                     C

Price Each
6000-15RS-25/70 15 watts` 400 Hz to 14 KHz    7 7/8"          8 3/4"            9 5/16"         $176.00
6000-30RS-25/70 30 watts 300 Hz to 12 KHz 10"              11"            10 1/2" $196.00



25/70 BAFFLED SPEAKER ASSEMBLIES PUBLIC ADDRESS SYSTEM

baggled speaker, edward's part number 6000-s-8-25/70 seriesBAFFLED SPEAKER

6000-S-25/70 SERIES

FEATURES
  • Made in USA
  • 25 and 70 Volt Line Operation
  • 8 and 15 Watt Models
  • Excellent Frequency Response
  • Low Mounting Profile
  • White Steel Speaker Baffle
Edwards 6000 Series Baffled Speakers are high quality units that feature a tastefully constructed steel baffle that blends well with modern interiors.  The speaker assembly includes a dual voltage 70 and 25-volt matching transformer.  The transformer has taps of 1/2, 1, 2, and 4 watts at 70 volts and 1/2, 1, and 2 watts at 25 volts.  The 15 Watt 6000-15S-8-25/70 has an additional apex whizzer cone for extended high frequency response.

The 15 Watt 6000-15S-8-25/70 features a 1 inch (2.5cm) voice coil with an 8 ohm impedance.  The unit's ceramic magnet weighs 10 oz. (283g).  Axial Sensitivity is 95dB at 1 meter.

The 8 Watt 6000-8S-8-25/70 features a 3/4 inch (2cm) voice coil with an 8 ohm impedance.  The unit's ceramic magnet weighs 4.8 oz. (134g).  Axial Sensitivity is 91dB at 1 meter.

To eliminate resonance, the units should be mounted in the Catalog 6000-8-BB back box.  To reduce tile sag caused by the installation weight on suspended ceilings, use the Catalog 6000-8-SB Speaker Support Bridge.

The Edwards 6000-S-8-25/70 Series are ideal for long and continuous use where quality reproduction is required.  The units are recommended for classrooms, building lobbies, stores, restaurants, and other commercial applications.

SPECIFICATIONS

  • 8 ohm Voice Coil Impedance
  • 8 inch Speaker Diameter
  • Cadmium Plated Finish (8 Watt Model)
  • Baked White Epoxy Powder Finish on 22 gauge, cold rolled steel (15 Watt Model)

PRICING

Cat. No. Power Rating Frequency Response Dimensions

       A                      B

Price Each
6000-8S-8-25/70 8 watts 90 Hz to 15 KHz

  12 7/8"                  3"

$43.00
6000-15S-8-25/70 15 watts 30 Hz to 20 KHz

  12 7/8"                  3"

$48.00



AM-FM TUNER CASSETTE PLAYER WITH PREAMP PUBLIC ADDRESS SYSTEM

am-fm tuner cassette player with preamp, edwards part number 6000-amfmcas-pa

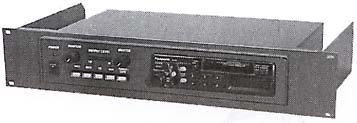

AM-FM TUNER CASSETTE PLAYER WITH PREAMP

6000-AMFMCAS-PA

PRICE  $1,434.00

The Edwards Catalog 6000AMFM-PA Cassette Player with preamplifier is a rack mount unit designed for use with the Edwards 60000-MPAMP Mixer Preamplifier.  The unit provides a single channel output from one or all five inputs.  A mixer/preamp section selects and/pre mixes up to four external inputs and one internal source.  The preamp section is equipped with a master gain control and output level LED indicator.  A monitor speaker and volume control are provided for input selection, cueing, and level adjustment.  A master on/off switch with indicator controls unit power.  A priority enable circuit allows giving one input priority over all others.   A bridging circuit is provided to increase the number of available program sources.  The unit features an AM-FM tuner with a cassette tape for standard size cassettes.  An auto reverse feature allows the cassette player to automatically play both sides of a cassette.
FEATURES
  • Quality AM-FM tuner
  • Deluxe cassette player
  • Advanced solid-state circuitry
  • Compact combination design
  • Exceptional sensitivity
  • Turner muting at end of tape
  • Five source inputs
  • Two low impedance mic inputs
  • CD, aux, & bridging inputs
  • Priority enable input & output
  • Master power switch & indicator
  • Master gain control
  • Preamp output level indicator
  • Monitor speaker & volume control
  • Five channel selector/mixer panel
  • Input channel level controls

AM TUNER SPECIFICATIONS

Frequency Range 530KHz to 1710KHZ
Selectivity 40dB (+/-10KHz)
Maximum Sensitivity 14dB/microV (5microV @ 5.W)

FM TUNER SPECIFICATIONS

Voltage 10.2V - 30V DC
Frequency range 87.9MHz to 107.9MHz
Frequency response 30Hz to 15Hz (+/-3dB)
Usable sensitivity 15.2dBf (1.6microV, 75ohm)
50dB quieting sensitivity 17.2dBf (2.0microV, 75ohm)
Alternate channel select. 75dB
Stereo separation 35dB at 1KHz
SNR 70dB
Capture Ratio 1.5dB
IF Response Ratio 100dB
Image Response 50dB

CASSETTE PLAYER SPECIFICATIONS

Tape speed 1-7/8 ips (4.76cm/sec)
Response 35Hz to 12.5KHz (+/-3dB)
Wow and Flutter 0.12% (wrms)
SNR 52dB

OVERALL DATA

Power +11VDC to +16VDC, 500mA Maximum
Inputs Mic: -300microVrms into 500 ohms                                                       CD:  -1.4Vrms into 10k ohms                                                               Aux:  -1Vrms or 0.1Vrms into 10K ohms (jumper selectable)          Bridging:  1Vrms
Audio Line Output 3Vrms maximum
Front Controls Power, Master Volume, Monitor Volume, Source selector/mixer
Rear Controls Master Power LED, Preamp output level bar graph, AM/FM Station Frequency, Clock, Cassette Direction
Indicator/Displays Master Power LED, Preamp Output Level Bar Graph, AM/FM Station Frequency, Clock, Cassette Direction
Terminations Preamp out (screw terminal), Power (screw terminal), MIC input (screw terminal), Priority Enable Input and Output (screw terminal), CD (RCA pin jack), AUX (RCA pin jack), Bridge (RCA pin jack), Antenna (Fi81C female for RC59 coaxial cable, 75 0hms)
Housing Metal rack mount panel finished in textured charcoal-colored powder coat
Dimensions 19" (48.3cm) wide, 3.5 (8.9cm) high, and 10-1/4" (26cm) deep
Weight 11.7lb (5.3kg)



AM-FM TUNER/CASSETTE PLAYER PUBLIC ADDRESS SYSTEM

am-fm tuner/cassette player, edward's part number 6000-amfmcas

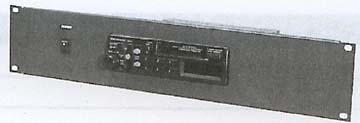

AM-FM TUNER/CASSETTE PLAYER

6000-AMFMCAS



The Edwards Catalog 6000-AMFMCAS Cassette Player is a rack mount unit designed for use with the Edwards 6000-MPAMP Mixer Preamplifier.  This unit features a quality tuner and deluxe cassette player.  The design combines a sensitive AM-FM tuner with a cassette player for standard size cassettes.  An auto-reverse feature allows the cassette player to automatically play both sides of a cassette.

The unit operates on a 120VAC at .3A obtained from the host system power supply; the output level is 1V RMS into a 600 ohm load.  The unit features AM and FM Band, tuning, on, off, volume, seek, bass, treble,  preset station selector (1-5), eject, rewind, and fast forward controls.  Indicators include radio band, stereo reception, station frequency, tape program, and preset station number.  The 6000-AMFMCAS is finished in textured charcoal powder coat paint with a polycarbonate overlay.

FEATURES
  • Quality AM-FM tuner
  • Deluxe cassette player
  • Advanced solid-state circuitry
  • Compact combination design
  • Exceptional sensitivity
  • Plays standard size cassette tapes
TUNER SPECIFICATIONS
  • 87.9MHz  to 107.9MHz frequency range
  • +/-3dB 30Hz-15Hz frequency response
  • 25dB at 1KHz stereo separation
  • SNR 70dB
  • 15.2dBf (1.6microV, 75 ohm) usable sensitivity
CASSETTE SPECIFICATIONS
  • 1-7/8 ips tape speed
  • 35Hz - 12.5KHz, +/-3dB response
  • 0.12% (wrms) wow & flutter
  • SNR 52 dB

PRICE PER EACH

$684.00





TOUCH-TO-TALK DESK MICROPHONE & STAND

touch-to-talk desk microphone & stand, edward's part number 6000-dmTOUCH-TO-TALK DESK MICROPHONE AND STAND

6000-DM

PRICE EACH  $228.00

FEATURES
  • Dual impedance with selector switch
  • Adjustable microphone height
  • Armo-DurŪ microphone case
  • Fingertip control bar - locking or non-locking action
The Edwards Desktop Microphone Catalog 6000-DM is ideal for paging and communications in applications such as restaurants, schools, and dispatching operations.  The microphone has an on/off switch operated via a fingertip control bar that provides momentary or locking switch operation.  The on/off switch includes a set of contacts prewired for remote relay operation.  The height of the 6000-DM is adjustable.  The unit is made of durable, high impact Armo-Dur.  The microphone can be used in high or low impedance applications and has a switch on the underside of the base for selecting the impedance required.  The unit is equipped with a non-detachable, 7 foot (2.1m), four conductor, two shielded, cable. SPECIFICATIONS
  • Magnetic controlled
  • Omni-directional polar pattern
  • 200Hz to 5KHz frequency range
  • 225 ohm impedance
  • Open circuit voltage:  0.14V (-77dB) low impedance, 1.78mV (-55.odB) high impedance
  • Dimensions:
  • 9 19/64" (236mm) high to 11 53/64" (300mm) when fully extended
  • 4" (102mm) wide
  • 5 11/16" (144mm) deep



MULTI-TONE GENERATOR

multitone generator, edward's part number 6000-mtgMULTI-TONE GENERATOR

6000-MTG

PRICE EACH  $135.00

FEATURES
  • 12 OR 24 V DC operation
  • Seven functions
  • One octave pitch control for repeating chimes, single chime, & tone
  • Volume control
  • Single switch closure to select each function
The Edwards Multi-tone Generator Catalog 6000-MTG is a solid state tone generator capable of operating from either 12VDC or 24VDC.  The unit can produce seven separate and distinct signals:  wail, warble, hi-lo, alarm, repeating chimes, single chime, and tone.  The unit is equipped with a pitch control that affects the chimes and the tone functions.  The volume control affects all functions.

Priority and tone hierarchy may be established through an external activation switch network.  All terminations on the unit are made to a feed-through, screw-type terminal back.

SPECIFICATIONS
  • 1V RMS nominal output
  • 10 ohm output load
  • Output level & pitch controls
  • Charcoal baked enamel finish
  • Feed-through, screw-type terminations
