EFB   EPLB - Special-Use  Emergency Lighting Ballast Ballasts Big Beam  Converts Fluorescent Fixtures to Emergency Lighting

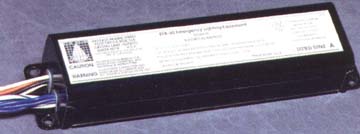

An affordable alternative to conventional
emergency lighting, the EFB Series is a
fluorescent ballast, which enhances existing
AC fixtures by illuminating 1 or 2 lamps
during a power failure.

big beam emergency lighting ballast converts fluorescent fixtures to emergency lighting efb eplb

EFB40-2 Height: 1.5" Length: 13.125" Width: 2.375" Mtg. Ctr.: 12.75"
All Others Height: 1.5" Length: 9.5" Width: 2.375" Mtg. Ctr.: 9.0"

Series Features
Electrical Characteristics
  • Solid State Charger
  • Dual-Voltage Transformer for 120/277VAC Operation
  • Maximum Input Rating 120VAC  60 Hz  4.0 Watt  277VAC  60 Hz  4.0 Watt
Lamps
  • For Use on Single or Double Lamps
  • Illuminates Rapid Start, Instant Start, High Output, Slim Lone, Circline, U-Shaped or Compact Lamps
Battery
  • Sealed Nickel Cadmium Battery
  • Maintenance-Free
Housing Listings Testing
  • Converts Florescent Fixtures to Emergency Lighting
  • Provides 1.5-Hour Illumination for Single or Double Lamps
  • Completely Self-Contained Inside or Above Lighting Fixutre
  • Compact Steel Housing
  • Convenient Length Lead Wires
  • Test Switch
  • Red (Power On)  Indicator
  • Operating Range: 50º-140ºF
  • Warranty: 2-5 Years
  • UL-Listed



Linear Lamps
Lamps Operated Qty. EFB40 500 Lumens EFB80 700 Lumens EFB40-2 1300 Lumens EPLB13 650 Lumens EPLB26 650 Lumens EPBL42 650 Lumens
2'-4' Rapid, Instant Energy Saving, T8 and T12 1 X X X
2'-4' Rapid, Instant Energy Saving, T8 and T12, HO & VHO 2   X** X**
5'-8' Rapid, Instant Energy Saving, T8 and T12, HO & VHO 1   X X
20W-40W Circline 1 X X X
20W-40W Circline 2   X X

*22- & 28-Watt 15 mm lamps are not compatible

**Note: Two-Lamp emergency is not possible with all electronic ballasts.  Consult customer services for specific ballast compatibility.



Compant Lamps
Lamps Operated Qty. EFB40 500 Lumens EFB80 700 Lumens EFB40-2 1300 Lumens EPLB13 650 Lumens EPLB26 650 Lumens EPBL42 650 Lumens
5-, 7-, 9- & 13-Watt Twin Tube (2 Pin) 1       X
9W-13W USA Quad Tube (2 Pin) 1       X
18W-26W Quad Tube (2 Pin)* 1         X
10W-26W Quad Tube (4 Pin) 1 or 2           X
18W-39W Long Compact 1           X
40-Watt Biax 1   X X
50-Watt Biax 1     X
55-Wat Biax 1     X
18W-26W Triple Tube (4 Pin) 1 or 2           X
32W-42W Triple Tube (4 Pin) 1           X

*22- & 28-Watt 15 mm lamps are not compatible

**Note: Two-Lamp emergency is not possible with all electronic ballasts.  Consult customer services for specific ballast compatibility.

Pricing

Model

1-3

4-9

10 & above

EFB40

 112.20 each 106.59 each 100.98 each
EFB80 165.60 each 157.32 each 149.04 each
EFB40-2 244.80 each 232.56 each 220.32 each
EPLB13 192.00 each 182.40 each 172.80 each
EPLB26 213.60 each 202.92 each 192.24 each
EPLB42 224.40 each 213.18 each 201.96 each



Popular Options
Part Number Description Price
-FC Flex Cord (EPLB Series) (All Leads Enclosed in Flex Conduit Test Switch and Charge Light Included in a Switch Box) 41.50 each
-TMK Top Mount Kit 16.00 each
RTSK Remote Test Switch Kit (EFB Series) (Remote Test Switch and Charge Light Mounted in a Switch Box with 3 Ft. Flex Conduit) 70.00 each
