XT SERIES - CLASS II TRANSFORMERS

Features
  • Electrical overload protection
  • Attractive designer white housing
  • Meets UL 1310 requirements
  • Primary winding thermal fuse protection
  • Current fuse on secondary winding
  • Heavy polyurethane insulated copper windings
  • Single voltage primary and secondary
  • Thermal cutoff 266 degree F (130 C), 1A, 250V
Description

The XT 20VA and 40VA series Class II direct plug-in transformers are specially designed for low voltage applications.  The transformers are equipped with internal electrical overload protection and current fuses to meet with UL requirements.

Both series transformers are built with quality, durability and high performance and are listed under UL 1310 standard.

A designer ABS housing was incorporated into the product to attractively blend-in with the interior decor most commonly found in today's businesses and residences.



Model Number

Input Voltage (VAC)

OutputVoltage (VAC)

Power Output    (VA)

Current Output  (AMPS)

Primary    Thermal   Fuse

Secondary Current    Fuse

Terminal     Screw Size

XT-1220

120

12

20

1.666

266 F

-

#6-32

XT-1240

120

12

40

3.333

266 F

5A 250V

#6-32

XT-1620

120

16.5

20

1.212

266 F

-

#6-32

XT-1640

120

16.5

40

2.424

266

5A 250V

#6-32

XT-1820

120

18

20

1.111

266 F

-

#6-32

XT-1840

120

18

40

2.222

266 F

5A 250V

#6-32

XT-2420

120

24

20

0.833

266

-

#6-32

XT-2440

120

24

40

1.666

266 F

5A 250V

#6-32

PRICING

Inventory may be discontinued without notice.

MODEL NUMBER

 1-20/ PRICE EACH

 21 OR MORE /PRICE EACH

XT-1220

$59.99

$49.99

XT-1240

$59.99

$49.50

XT-1620

$59.99

$49.99

XT-1640

$59.99

$49.50

XT-1820

$59.99

$49.99

XT-1840

$59.99

$49.50

XT-2420

$59.99

$49.99

XT-2440

$59.99

$49.50

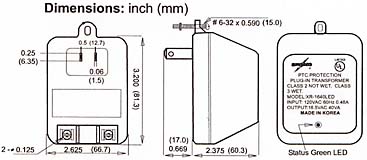

XR SERIES PLUG-IN TRANSFORMERS

AUTO-RESETTING WITH LED

40VA AND 50VA TRANSFORMERS

Features:
  • Auto-reset PTC protection
  • Power Status LED (Green)
  • Meets UL 1310 requirements
  • Attractive designer white housing
  • Output power 40VA and 50VA series
  • Heavy polyurethane insulated copper windings
  • Single voltage primary and secondary
  • PTC (positive temperature coefficient)

Input voltage 120 VAC, 60Hz



Description

The transformers are equipped with an Auto-resetting (PTC) switch and a green power status LED.

These transformers are built with quality, durability and high performance and are listed under UL 1310 standard.

The XR-40VA and 50VA series Class II direct plug-in transformers are specially designed for low voltage applications.

A designer ABS housing was incorporated into the product to attractively blend-in with today's interior decor.

How the PTC switch works:

The PTC switch interrupts the flow of current when excessive voltage or a fault condition is detected within the circuit.  The PTC then switches into its high-resistance protective state.  It will auto-reset only after it has cooled and the fault condition has been corrected.

Model Number

Input Voltage (VAC)

Output Voltage (VAC)

Power Output    (VA)

Current Output  (Amps)

Secondary Winding Protection

Status    Power Indicator

Terminal Screw Size

XR-1204LED

120

12

40

3.33

PTC

Green LED

#6-32

XR-1640LED

120

16.5

40

2.42

PTC

Green LED

#6-32

XR-1840LED

120

18

40

2.22

PTC

Green LED

#6-32

XR-2440LED

120

24

40

1.66

PTC

Green LED

#6-32

XR-1250LED

120

12

50

4.17

PTC

Green LED

#6-32

XR-1650LED

120

16.5

50

3.03

PTC

Green LED

#6-32

XR-1850LED

120

18

50

2.78

PTC

Green LED

#6-32

XR-2450LED

120

24

50

2.08

PTC

Green LED

#6-32

PRICING

Inventory may be discontinued without notice.

MODEL NUMBER

1 TO 20/ PRICE EACH

21 OR MORE/ PRICE EACH

XR-1240LED

$69.99

$59.99

XR-1640LED

$69.99

$59.99

XR-1840LED

$69.99

$59.99

XR-2440LED

$69.99

$59.99

XR-1250LED

$69.99

$59.99

XR-1650LED

$69.99

$59.99

XR-1850LED

$69.99

$59.99

XR-2450LED

$69.99

$59.99

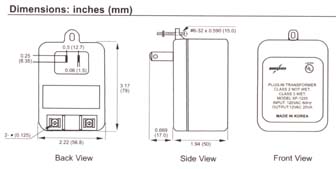

XF-SERIES PLUG-IN TRANSFORMERS

20VA/40VA/50VA CLASS II TRANSFORMERS

20VA Class II Transformers

Description

The XF Series Class II direct plug-in transformers are specially  designed for low voltage applications.  The transformers are equipped with internal electrical over-load protection and current fuses to meet with UL requirements.

The XF Series transformers are built with quality, durability and high performance and are listed under UL 1310 standard.

A designer ABS housing was incorporated into the product to attractively blend-in with the interior decor most commonly found in today's business and residences.

Features

  • Meets UL 1310 requirements
  • Attractive designer white housing
  • Output power 40VA/50VA (watts)
  • Heavy polyurethane insulated copper windings
  • Single voltage primary and secondary
  • Electrical overload protection
  • Current fuse on secondary winding
  • Thermal cutoff max. 266F (130C), 1A, 250V















40VA and 50VA Class II Transformers

Description

The XF Series Class II direct plug-in transformers are specially designed for low voltage applications.  The transformers are equipped with internal electrical over-load protection and current fuses to meet with UL requirements.

The XF Series transformers are built with quality, durability and high performance and are listed under UL 1310 standard.

A designer ABS housing was incorporated into the product to attractively blend-in with the interior decor most commonly found in today's businesses and residences.

Features

  • Meets UL 1310 requirements
  • Attractive designer white housing
  • Out put power 40VA/50VA (watts)
  • Heavy polyurethane insulated copper windings
  • Single voltage primary and secondary
  • Electrical overload protection
  • Current fuse on secondary winding
  • Thermal cutoff max. 266F(130C), 1A, 250V

















Ordering Information for 20VA Class II Transformers

Model Number

Input     Voltage

   Power     Output

Output     Voltage    (VAC)

Rated Current Output (Amps)

Protection

Terminal       Screw Size

XF-1220

120V AC

20VA

12

1.666

Inherently

#6-32

XF-1620

120V AC

20VA

16.5

1.212

Inherently

#6-32

XF-1820

120V AC

20VA

18

1.111

Inherently

#6-32

XF-2420

120V AC

20VA

24

0.833

Inherently

#6-32

Ordering Information for 40VA and 50VA Class II Transformers

Model Number

Input

    Power      Output

Output     Voltage    (VAC)

Rated Current Output (Amps)

Secondary Current Fuse

   Terminal       Screw Size

XF-1240

120V AC

40VA

12

3.333

5A 250V

#6-32

XF-1640

120V AC

40VA

16.5

2.424

5A 250V

#6-32

XF-1840

120V AC

40VA

18

2.222

5A 250V

#6-32

XF-2440

120V AC

40VA

24

1.666

3A 250V

#6-32

XF-1250

120V AC

50VA

12

4.17

5A 250V

#6-32

XF-1650

120V AC

50VA

16.5

3.03

5A 250V

#6-32

XF-1850

120V AC

50VA

18

2.78

4A 250V

#6-32

XF-2450

120V AC

50VA

24

2.08

3A 250V

#6-32

PRICING

XF-20VA SERIES CLASS II TRANSFORMS

MODEL NUMBER

1 TO 20/ PRICE EACH

21 OR MORE/ PRICE EACH

XF-1220

$59.99

$49.99

XF-1620

$59.99

$49.99

XF-1820

$59.99

$49.99

XF-2420

$59.99

$49.99

XF-40VA AND 50VA SERIES CLASS II TRANSFORMERS

MODEL NUMBER

1 TO 20/ PRICE EACH

21 OR MORE/ PRICE EACH

XF-1240

$59.99

$43.99

XF-1640

$59.99

$43.99

XF-1840

$59.99

$43.99

XF-2440

$59.99

$43.99

XF-1250

$59.99

$43.99

XF-1650

$59.99

$43.99

XF-1850

$59.99

$43.99

XF-2450

$59.99

$43.99
